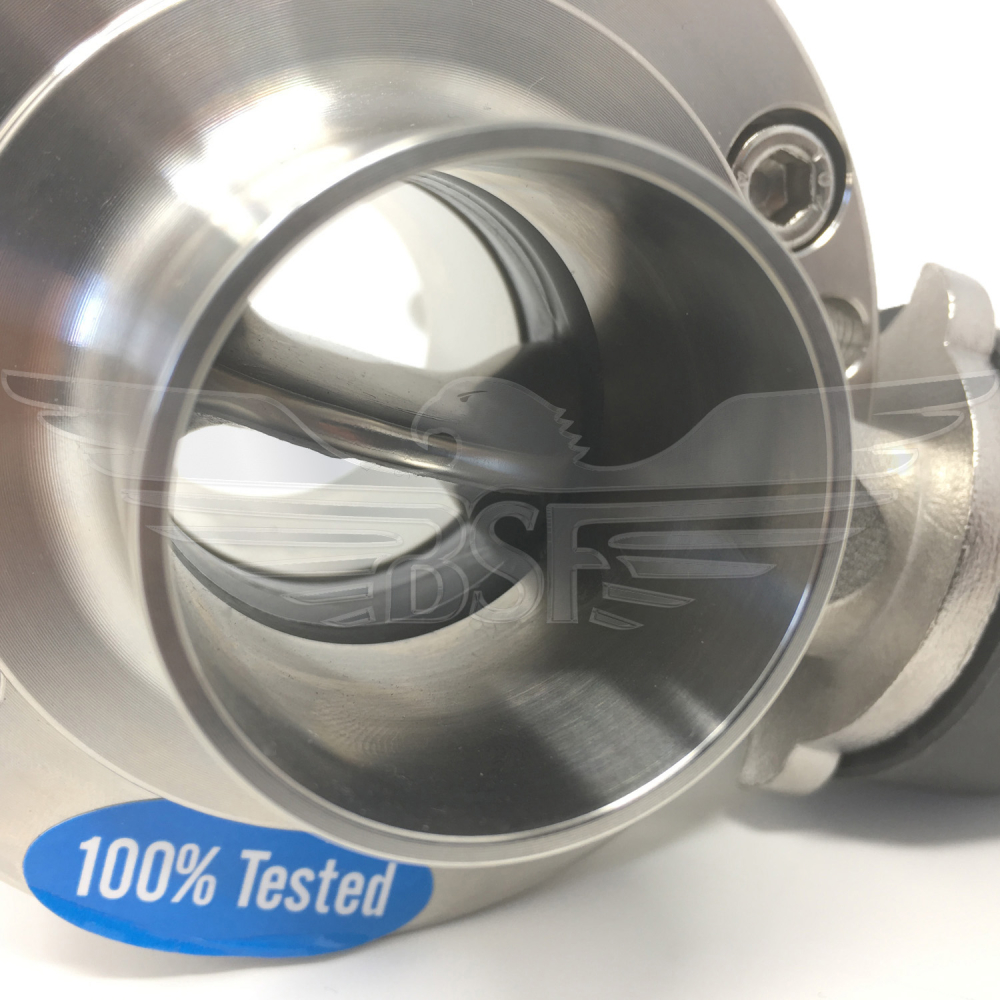

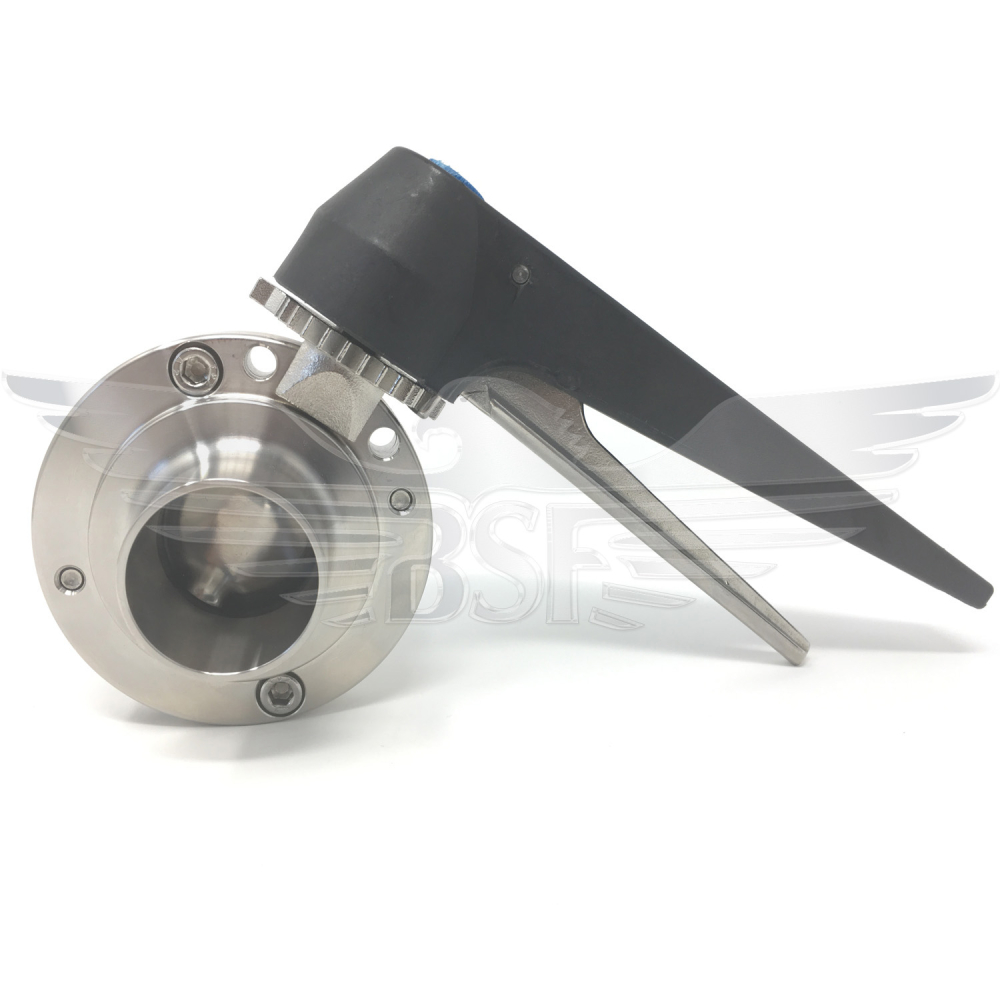

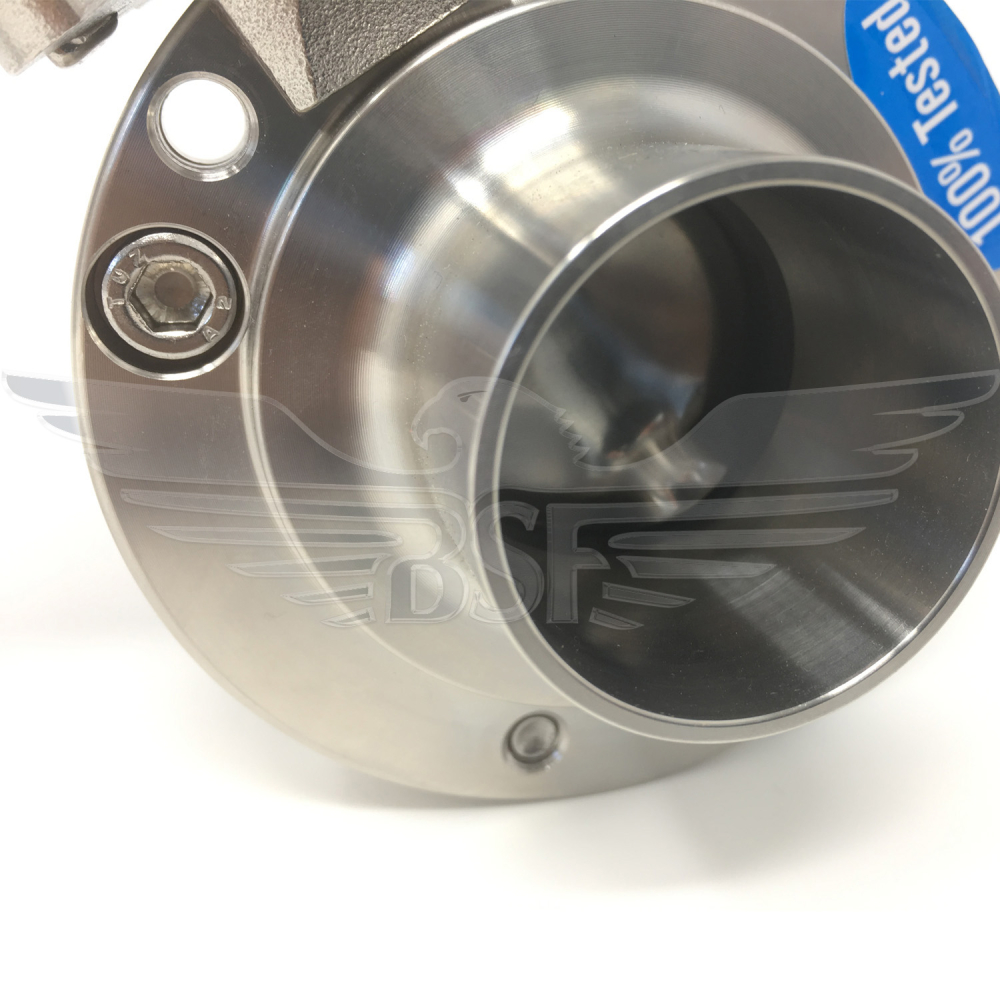

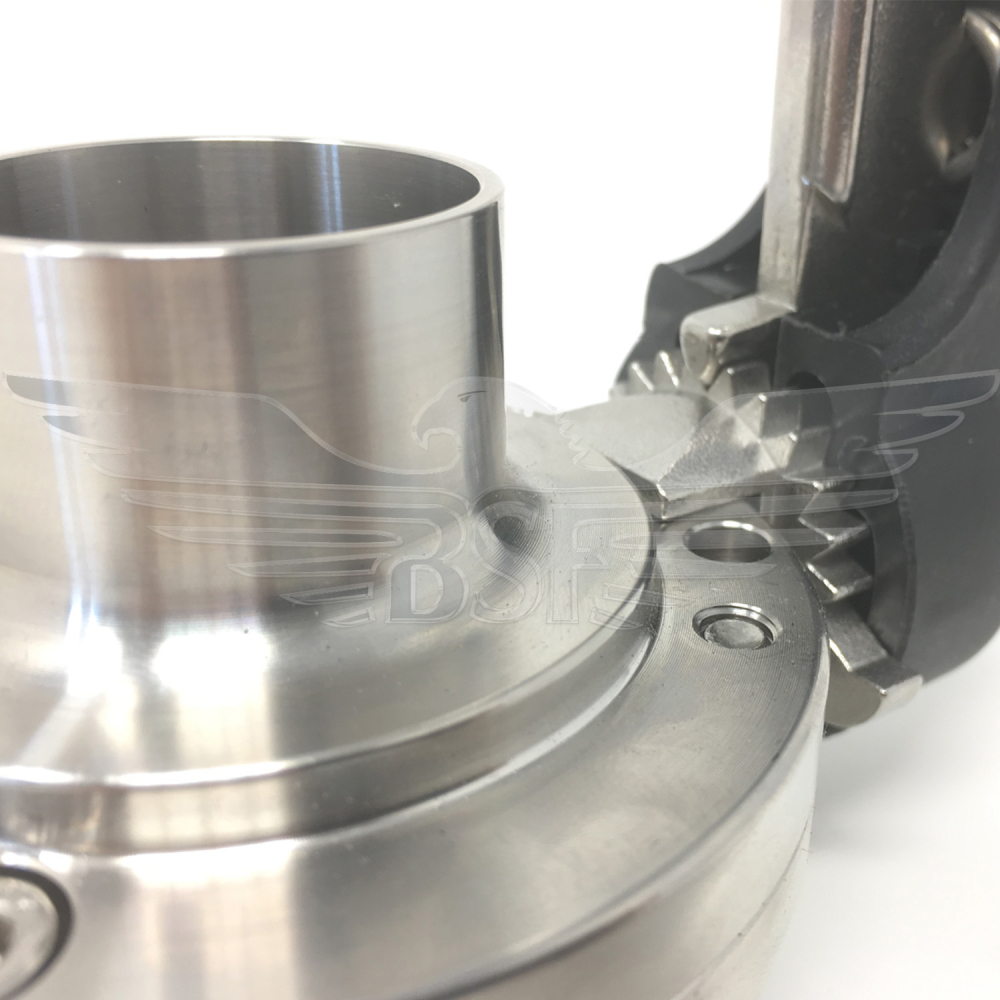

1Inch P/E 'BSF' BUTTERFLY VALVE 316L EPDM BODY SEAL
RJT P/E Butterfly Valve
RJT P/E Butterfly Valve2
RJT P/E Butterfly Valve3

1" P/E 'BSF' BUTTERFLY VALVE 316L EPDM BODY SEAL


Stock Code: 2100910
In Stock
£42.00

Descriptions

  • Stocked from 1″ OD – 4″ OD.
  • Plain Weld end suitable for welding.
  • EPDM seal as standard – Viton & Silicone seals also available.
  • 12 position plastic handle – c/w 304 stainless steel gripper bar as standard.
  • For use upto 150psi.
  • Drive head 8mm x 12mm.

Full actuation and control packages available from stock.

Size1" / 25.4mm OD
Grade316/L
Product GroupButterfly Valve
Standard3A
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Disc Drive Head8mm x 12mm
Additional InfoNylon Reinforced Handle & 12 Position Notch Plate
Handle Included?Yes
