1Inch P/E 90° PUMP PROTECTION STRAINER BODY KIT 316

1" P/E 90° PUMP PROTECTION STRAINER BODY KIT 316

This item is made to order by BSF. Please allow approx for delivery

Stock Code: 2340290
In Stock
£127.45

Based on the ever popular 90° Product strainer, this has the same features however is far more compact design. Therefore can fit into the smallest of spaces.

  • Designed & Manufactured by Berkeley Stainless Fittings Ltd, to the highest quality.
  • Manufactured entirely from 316L Stainless Steel.
  • 1″ OD – 6″ OD line size available.
  • Standard finish: Dull Polished O.D, Mill finish I.D.
  • For 1″, 1.5″ & 2.5″ inlet/outlet, a concentric reducing cone will be used on a standard body.
  • Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS.
  • Shut off valves can be welded to the unit.

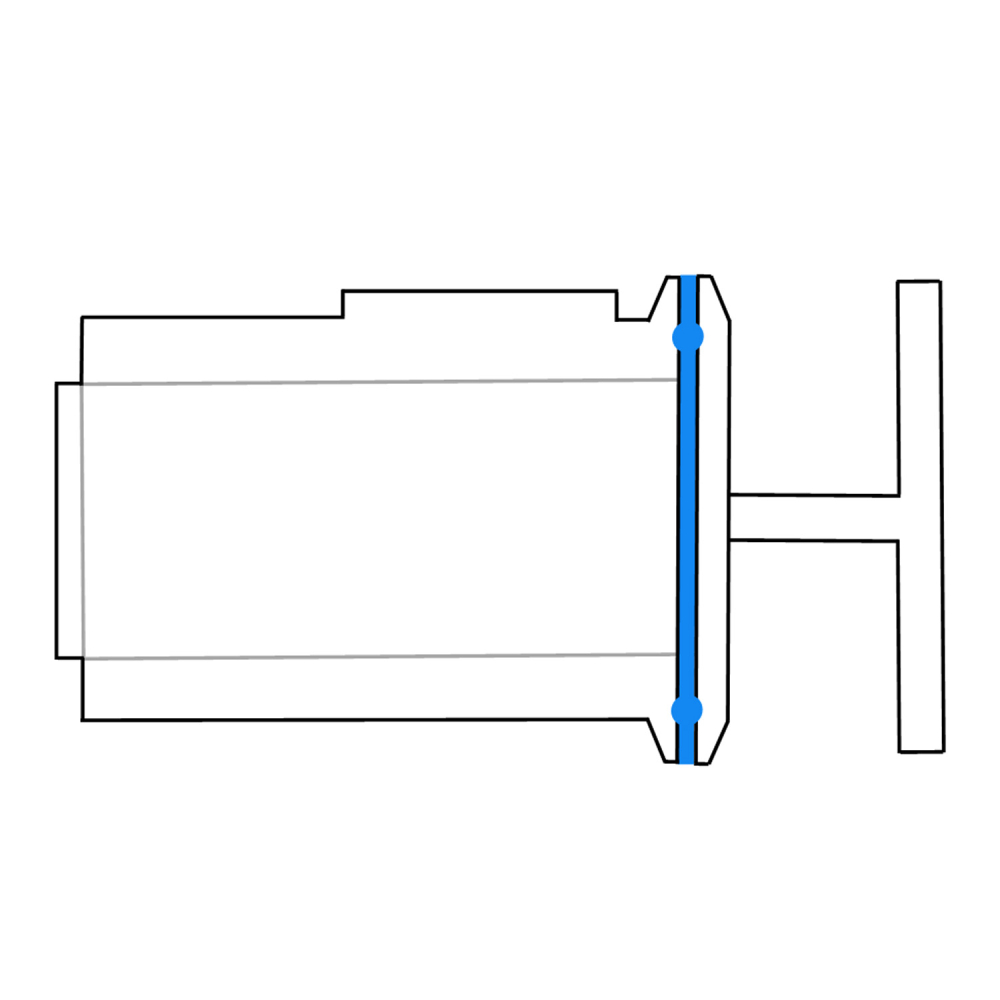

  • 90° Pump Protection strainer assembly consists of: 1 x Element, 1 x Body, 1 x Single Hinged Clamp & 1 x Lipped EPDM joint ring.
  • Elements – Perforated type & wedge wire type available to choose from – See element pages
  • We recommend ordering a replacement element to ease cleaning and to minimize line down time.
  • Jacketed & Duplex strainers can also be supplied to the customers specifications.
  • Should you require anymore information regarding our strainers – Please contact your local branch and a member of sales will be happy to assist you.
Product Group90 Degree Pump Protection Element
Size1"
Grade316
Seal MaterialEPDM Body Seal
FinishDull Polished OD
Additional Info2" Element Coned to 1" OD
