6Inch P/E 90° PUMP PROTECTION STRAINER BODY KIT 316

6" P/E 90° PUMP PROTECTION STRAINER BODY KIT 316


Stock Code: 2340296
Out of Stock
£556.65

Descriptions

Based on the ever popular 90° Product strainer, this has the same features however is far more compact design. Therefore can fit into the smallest of spaces.

  • Designed & Manufactured by Berkeley Stainless Fittings Ltd, to the highest quality.
  • Manufactured entirely from 316L Stainless Steel.
  • 1″ OD – 6″ OD line size available.
  • Standard finish: Dull Polished O.D, Mill finish I.D.
  • For 1″, 1.5″ & 2.5″ inlet/outlet, a concentric reducing cone will be used on a standard body.
  • Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS.
  • Shut off valves can be welded to the unit.

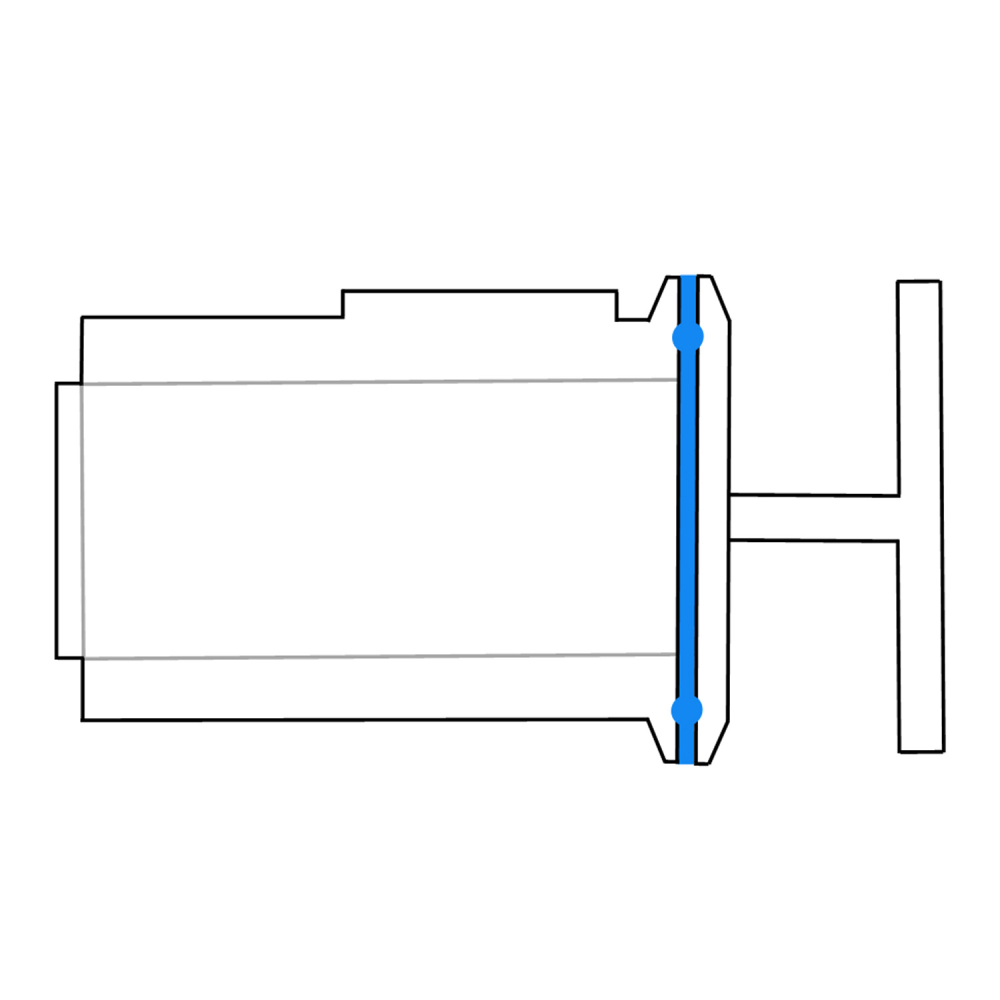

  • 90° Pump Protection strainer assembly consists of: 1 x Element, 1 x Body, 1 x Single Hinged Clamp & 1 x Lipped EPDM joint ring.
  • Elements – Perforated type & wedge wire type available to choose from – See element pages
  • We recommend ordering a replacement element to ease cleaning and to minimize line down time.
  • Jacketed & Duplex strainers can also be supplied to the customers specifications.
  • Should you require anymore information regarding our strainers – Please contact your local branch and a member of sales will be happy to assist you.

Size6"
Grade316
Product Group90 Degree Pump Protection Element
Seal MaterialEPDM Body Seal
FinishDull Polished OD
