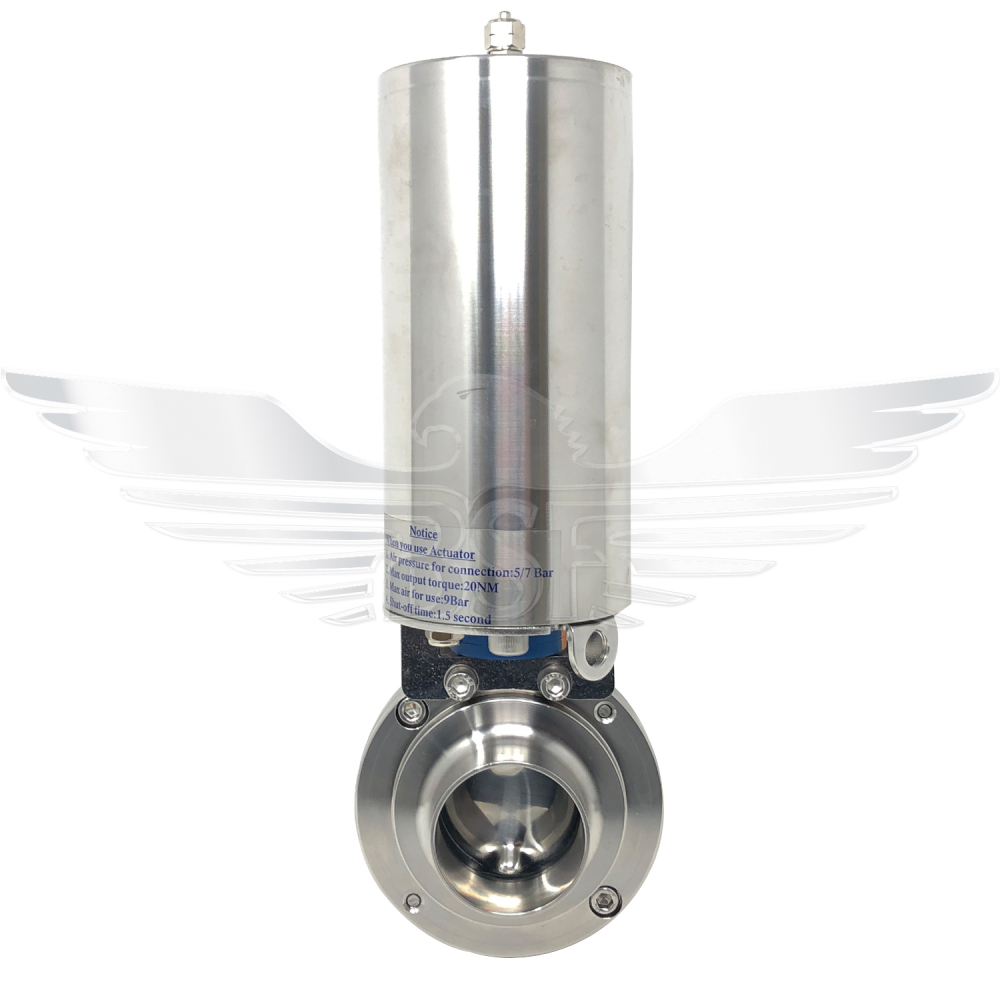

C3 PNEUMATIC ACTUATOR FOR 1Inch- 3Inch BFLY VALVE - AIR/SPRING

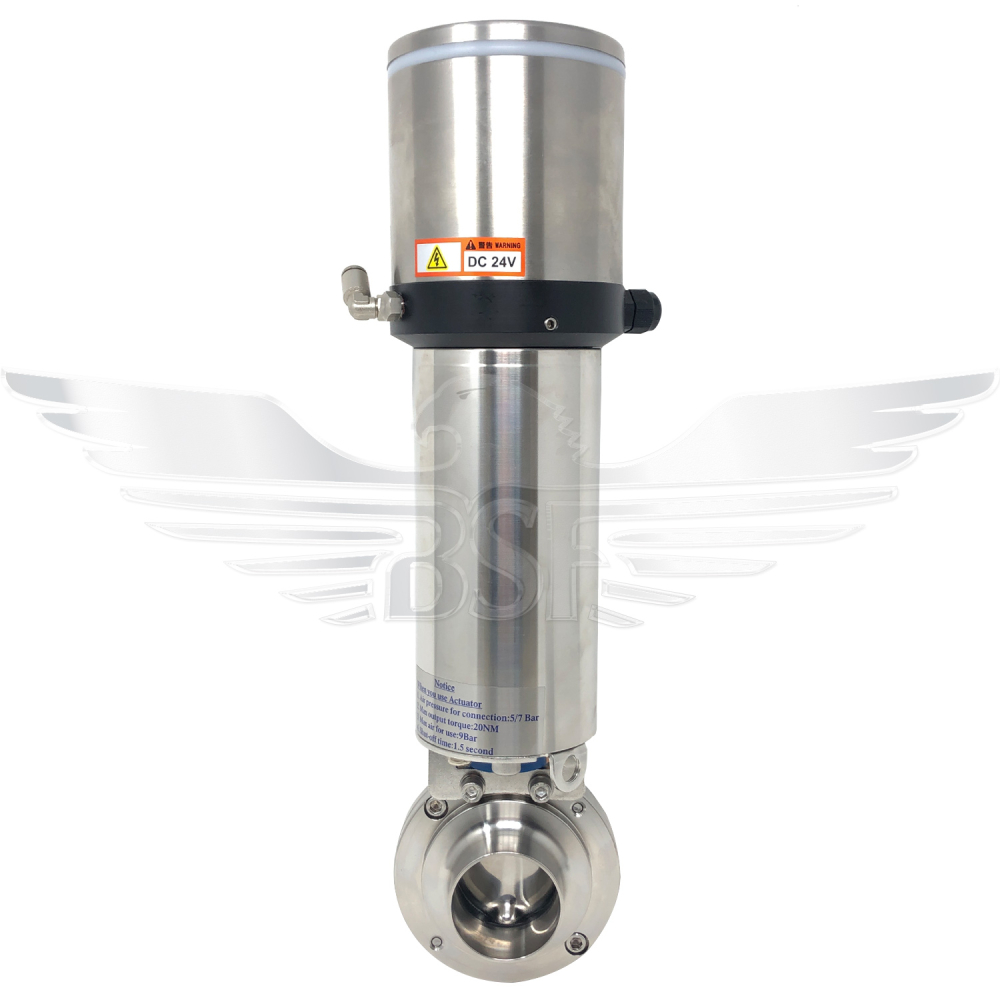

C3 Actuator & Control Box

C3 PNEUMATIC ACTUATOR FOR 1"- 3" BFLY VALVE - AIR/SPRING


Stock Code: 2100857
Out of Stock
£108.11

Descriptions

  • 304 Stainless Steel.
  • Air / Spring operation.
  • For use with: 1″ – 3″ Butterfly Valves.
  • Can be used with or without a control box. (Type C3 Control Box)
  • Signal Control: Can be connected with a M12 Screw proximity switch – PNP or NPN.
  • C3 Shut off time: 1.5 Seconds.
  • C3 Operating Air Pressure: 6kg/cm2 – Min: 5 bar – Max: 9 bar compressed air.
  • C3 Air Consumption: 0.266 Litre @ 5 bar.
  • MAX Output Torque: 20N/M.
  • Actuator Drive Head: 12mm x 12mm Square.
  • C3 Weight: 3.85kg.
  • Working Temperature: -10°c to +140°c.
  • Individually wrapped C/W mounting Kit.

C1 Actuators have now been replaced with the new and improved C3 Actuator. This is classed as a direct replacement.

Size1"- 3"
Grade304
Product GroupButterfly Valve Actuation & Control
FinishMachined
Additional InfoNormally Closed
