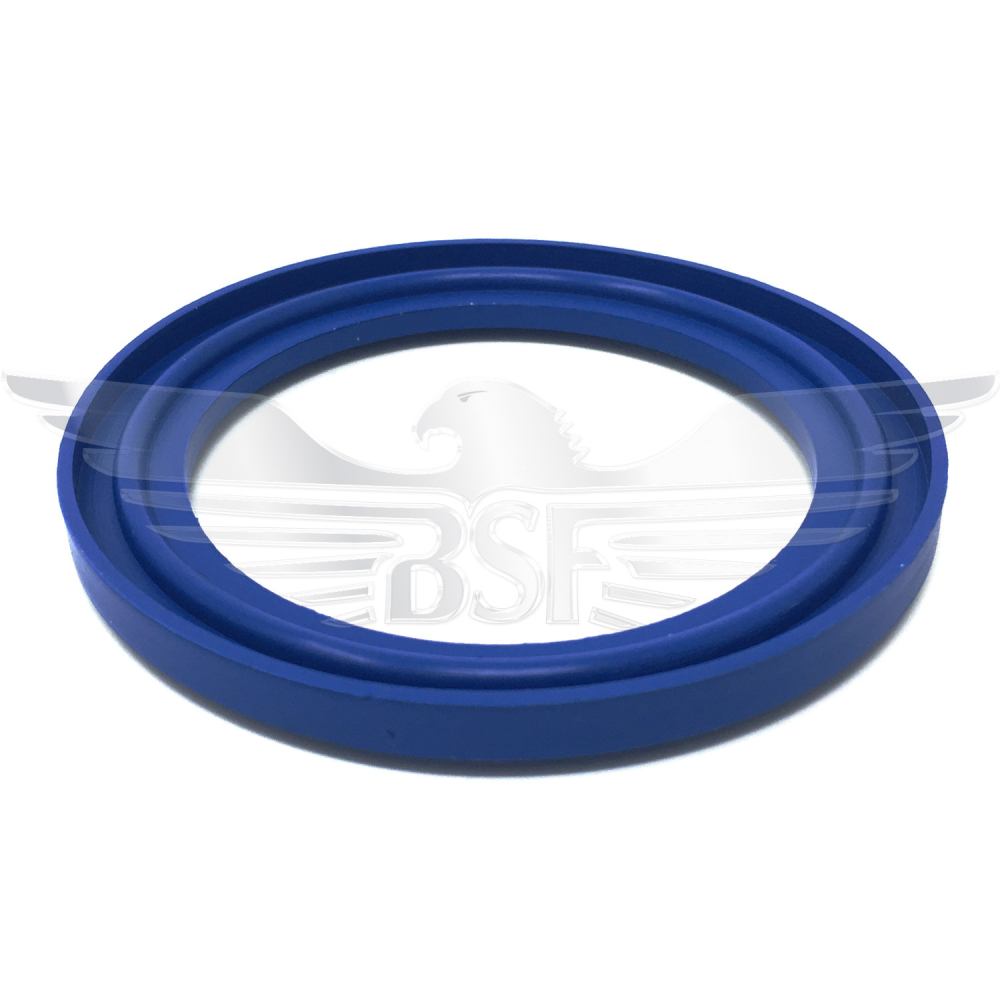

3Inch LIPPED CLAMP JOINT RING BLUE EPDM

3" LIPPED CLAMP JOINT RING BLUE EPDM


Stock Code: 0302630
In Stock
£0.86

Clamp Union (Also known as Tri-Clamp) – Uses two ferrules clamped together with a joint ring to form a superior hygienic union. The two ferrules have a tapered flange which when compressed by the clamp, it forms a tight hygienic seal.

Widely used on continental Europe for many years they are now very popular in the UK.

The clamp can be removed by hand using the wing nut, no spanners required, this is particularly useful where the product line needs to be checked frequently.

  • Stocked from 1/2″ OD – 10″ OD
  • Ferrules stocked in 21.5mm & 28mm length.
  • Ferrules manufactured to BS4825 PT3 – Internal finish 0.8Ra – 1.6Ra
  • Single & Double hinged clamps available.
  • “BSF” Type clamp as standard with union – which is single hinged.
  • Standard joint rings is blue EPDM, Other materials available including PTFE solid, PTFE envelope, Viton, Silicone & Metal Detectable EPDM.
Product GroupTri-Clamp
Size3"
StandardBS4825 PT3
Seal MaterialEPDM
Seal ColourBlue
