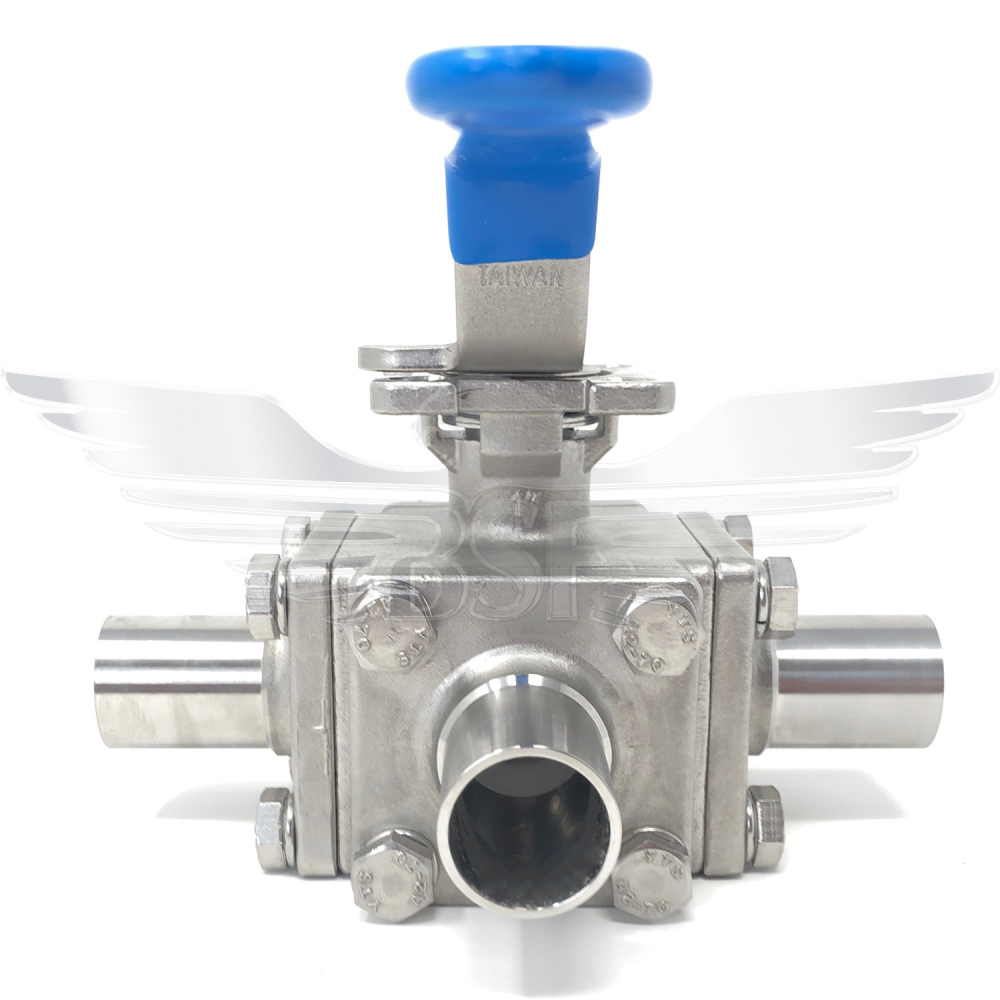

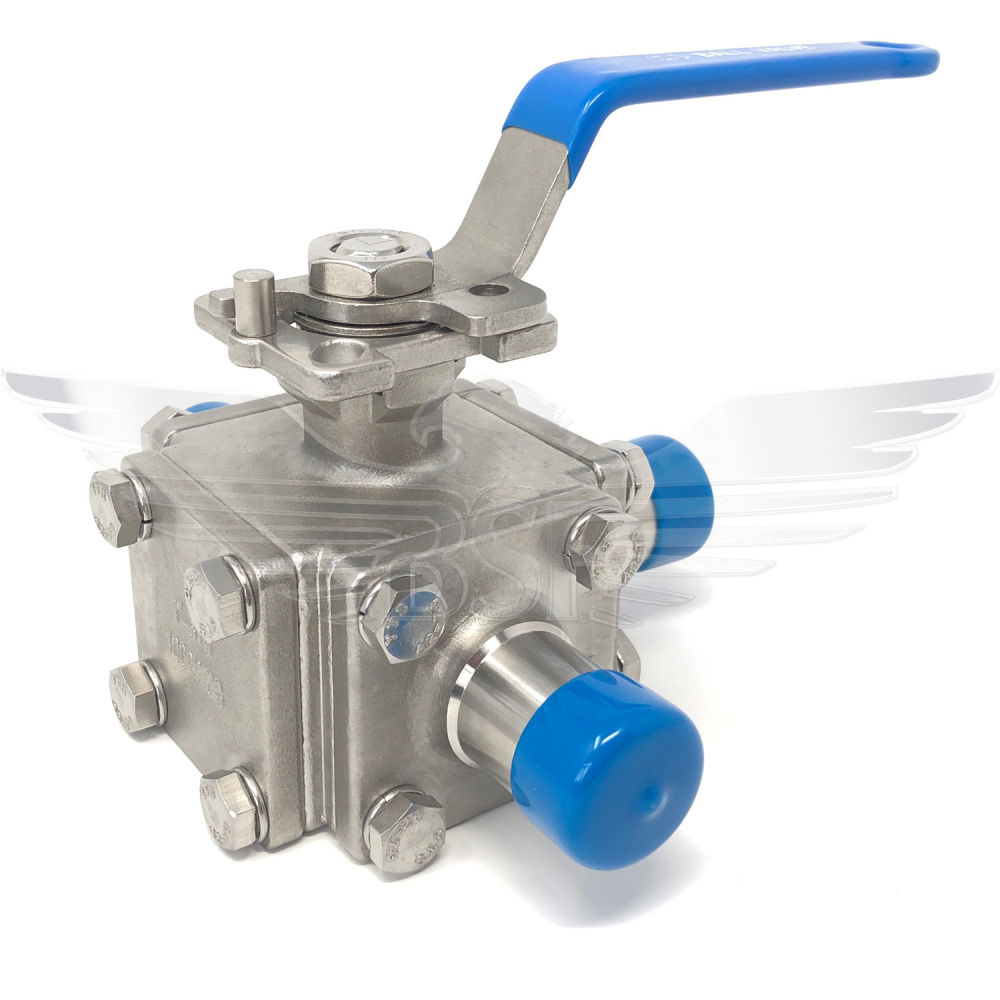

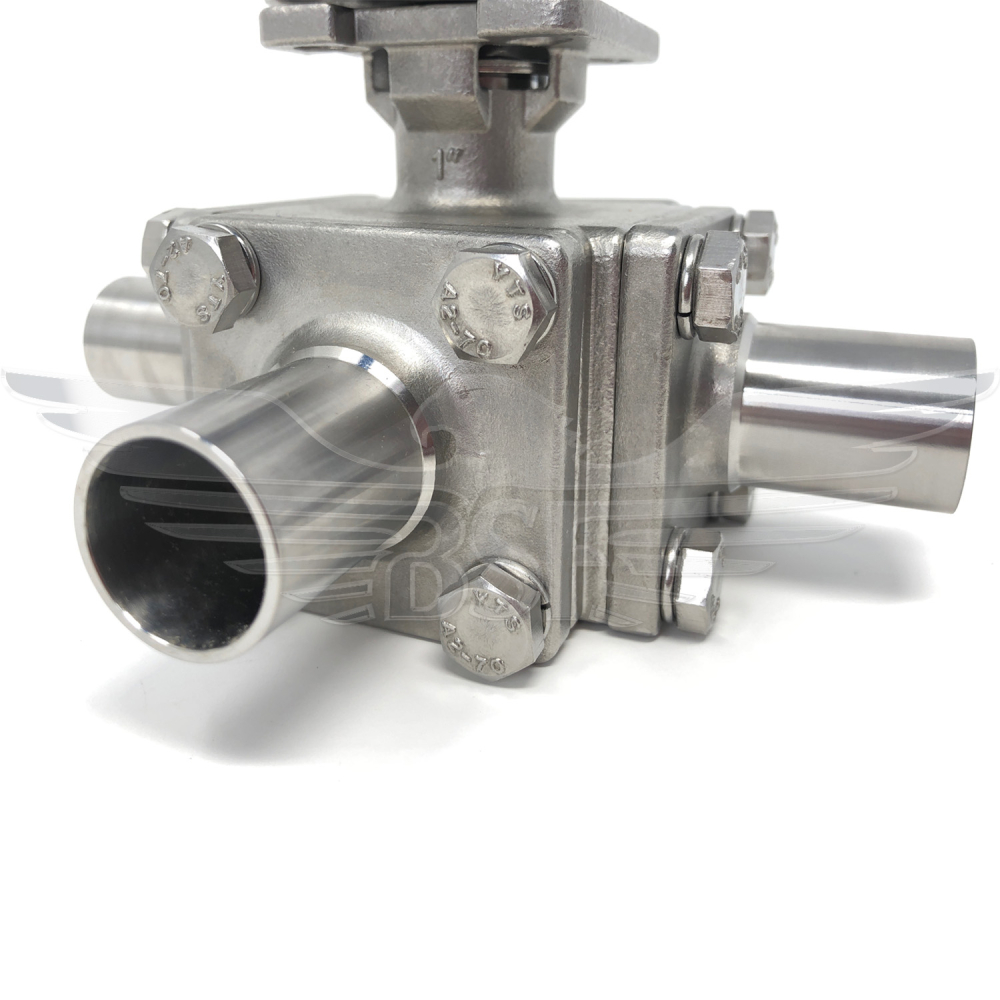

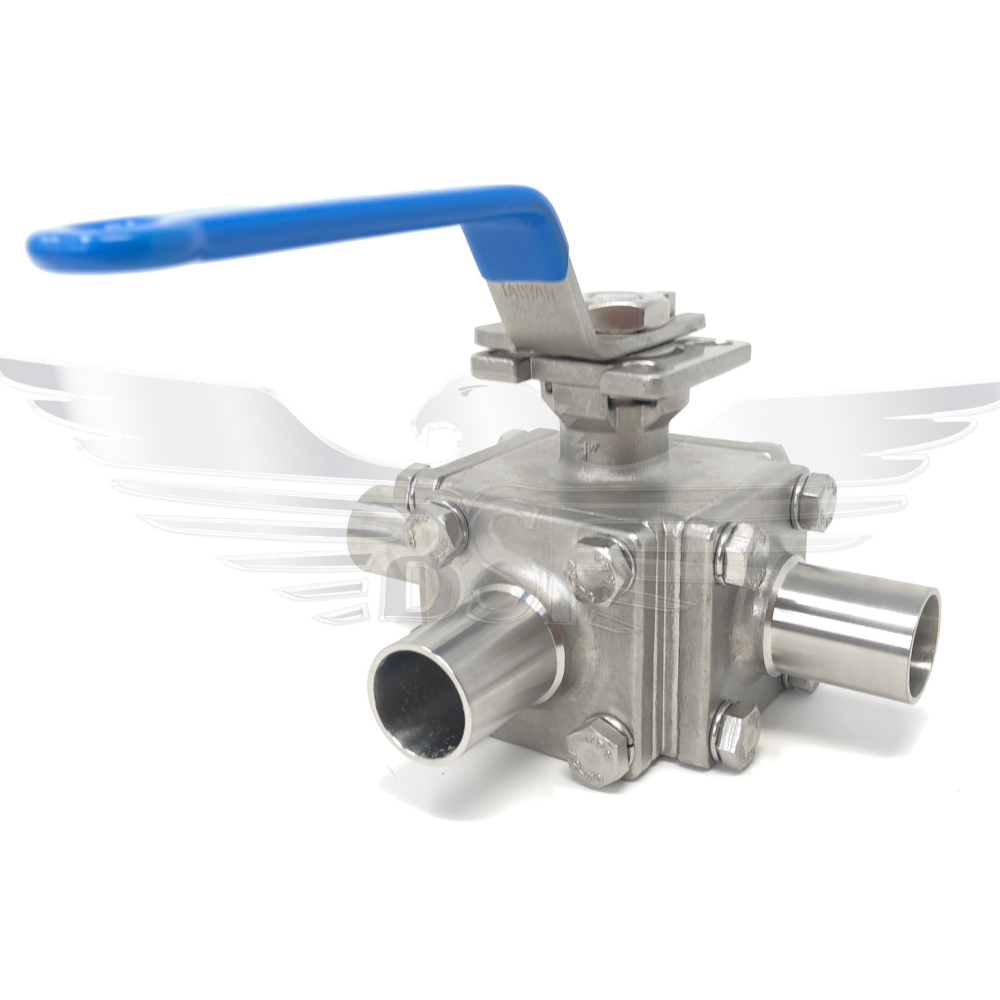

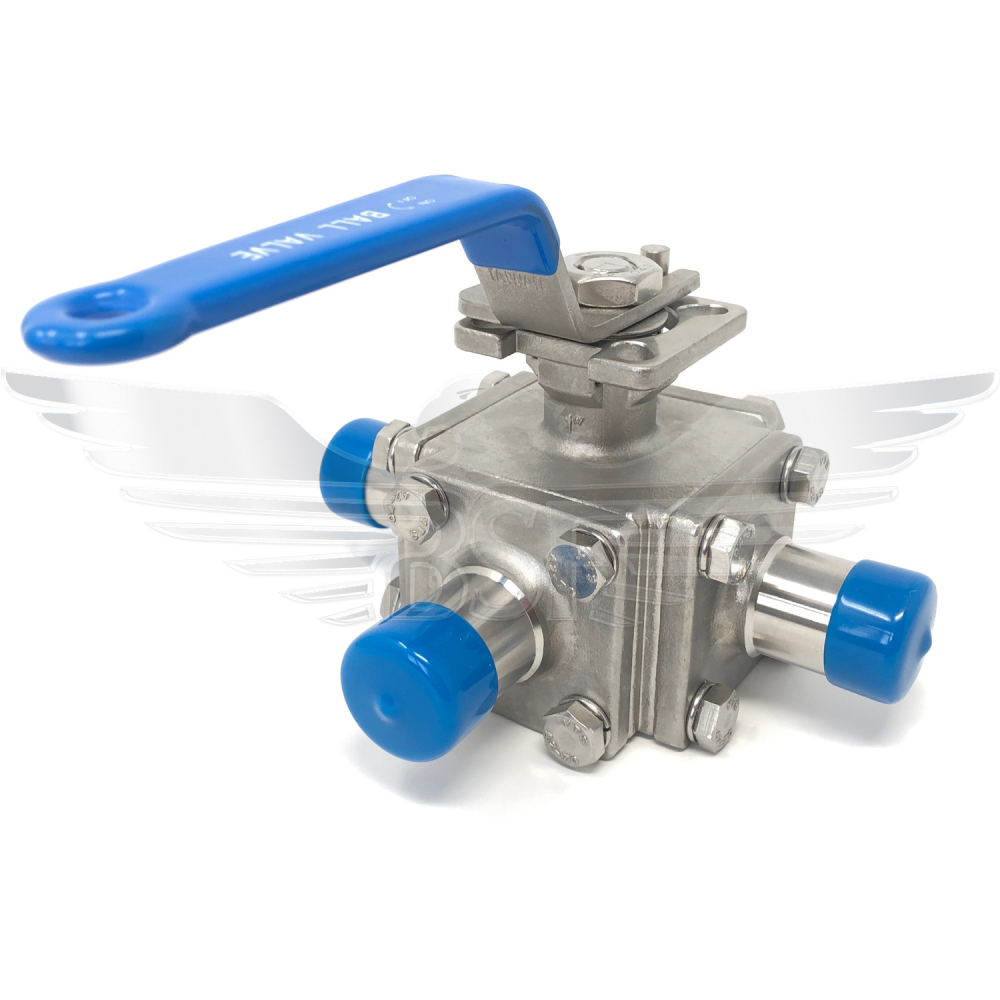

2.5Inch OD 3 WAY T PORT SANITARY BALL VALVE 316 - DIRECT MOUNT
3 Way Ball Valve
3 Way Ball Valve 2
3 Way Ball Valve 3
3 Way Ball Valve 4

2.5" OD 3 WAY T PORT SANITARY BALL VALVE 316 - DIRECT MOUNT


Stock Code: 2111325
Out of Stock
£819.98

Descriptions

  • Body & Wetted parts grade 316 stainless steel.
  • Stocked from 1/2″ OD – 3″ OD.
  • ‘L’ & ‘T’ configuration
  • Weld ends available ex-stock – Alternative ends can be supplied on request.
  • Hygienic standard.
  • Full bore design.
  • PTFE Cavity seat – Crevice free.
  • Max Pressure up to 10 Bar.
  • Lockable handle as standard.
  • Standard ISO Mounting pad
  • Full Actuation package available from stock

Size2.5" / 63.5mm OD
Grade316
Product GroupSanitary Ball Valve - 3 Way
Standard3A
Seal MaterialPTFE
Seal ColourWhite
FinishMachined
Handle Included?Yes

Click on any of the following links to download the file.

There are no reviews for this product yet. Be the first to add one!
