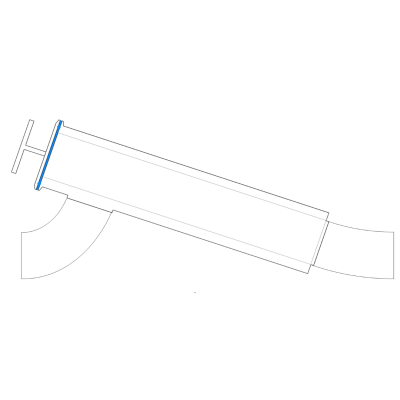

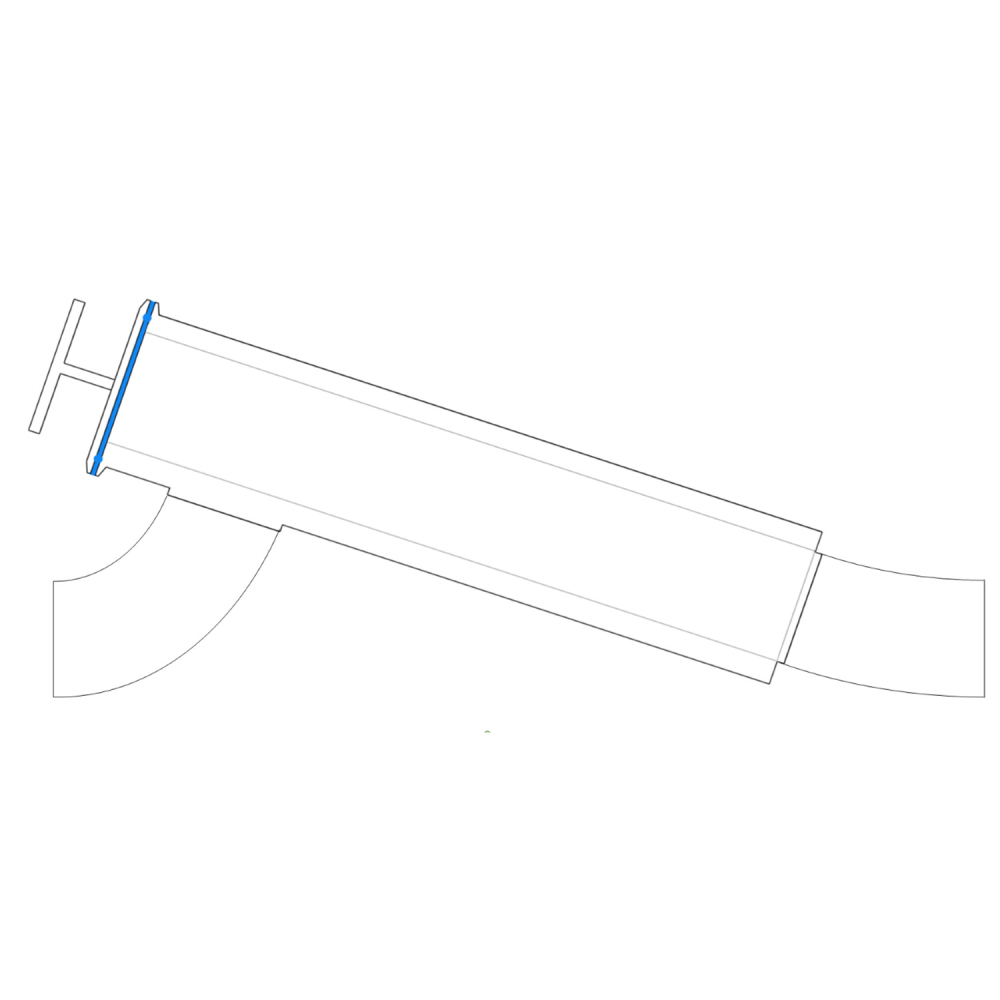

2.5Inch P/E 'Y TYPE' PRODUCT STRAINER BODY KIT 316

2.5" P/E 'Y TYPE' PRODUCT STRAINER BODY KIT 316

This item is made to order by BSF. Please allow approx for delivery

Stock Code: 2340285
In Stock
£377.96

Based on the 90° product strainer, with characteristics of the Y Type pump protection strainer. It is designed specifically for finer filtration of product, and to remove potentially unwanted items in the product. The body is much larger than the pump protection strainer to keep back pressure and pressure drop to a minimum, whilst remaining on the same plane.

  • Designed & Manufactured by Berkeley Stainless Fittings Ltd, to the highest quality.
  • Manufactured entirely from 316L Stainless Steel.
  • 1″ OD – 6″ OD line size available.
  • Standard finish: Dull Polished O.D, Mill finish I.D.
  • For 1″, 1.5″ & 2.5″ inlet/outlet, a concentric reducing cone will be used on a standard body.
  • Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS.
  • Shut off valves can be welded to the unit.
  • 90° product strainer assembly consists of: 1 x Element, 1 x Body, 1 x Single Hinged Clamp & 1 x Lipped EPDM joint ring.
  • Elements – Perforated type & wedge wire type available to choose from – See element pages
  • We recommend ordering a replacement element to ease cleaning and to minimize line down time.
  • Jacketed & Duplex strainers can also be supplied to the customers specifications.
  • Should you require anymore information regarding our strainers – Please contact your local branch and a member of sales will be happy to assist you.
Product GroupY Type Product Strainer Kit
Size2.5"
Grade316
Seal MaterialEPDM Body Seal
FinishDull Polished OD
Additional Info3" Element Coned to 2.5" OD
