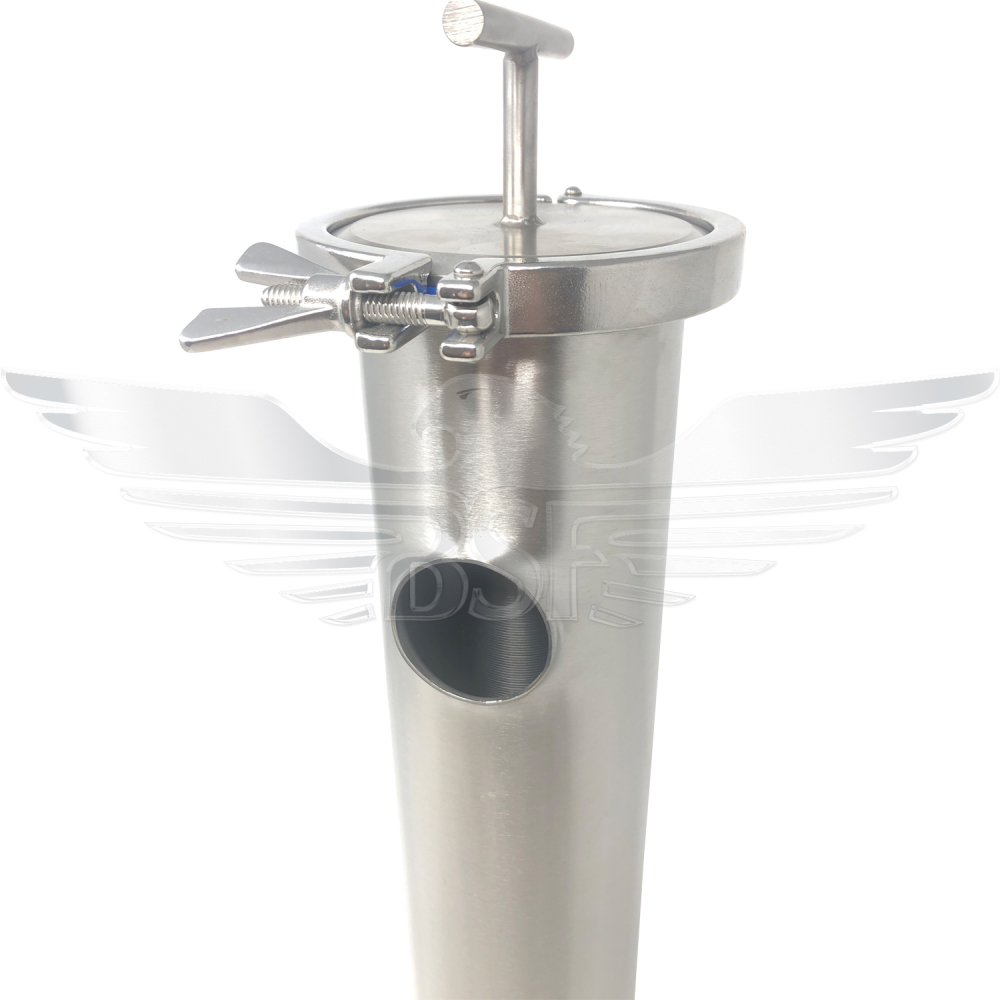

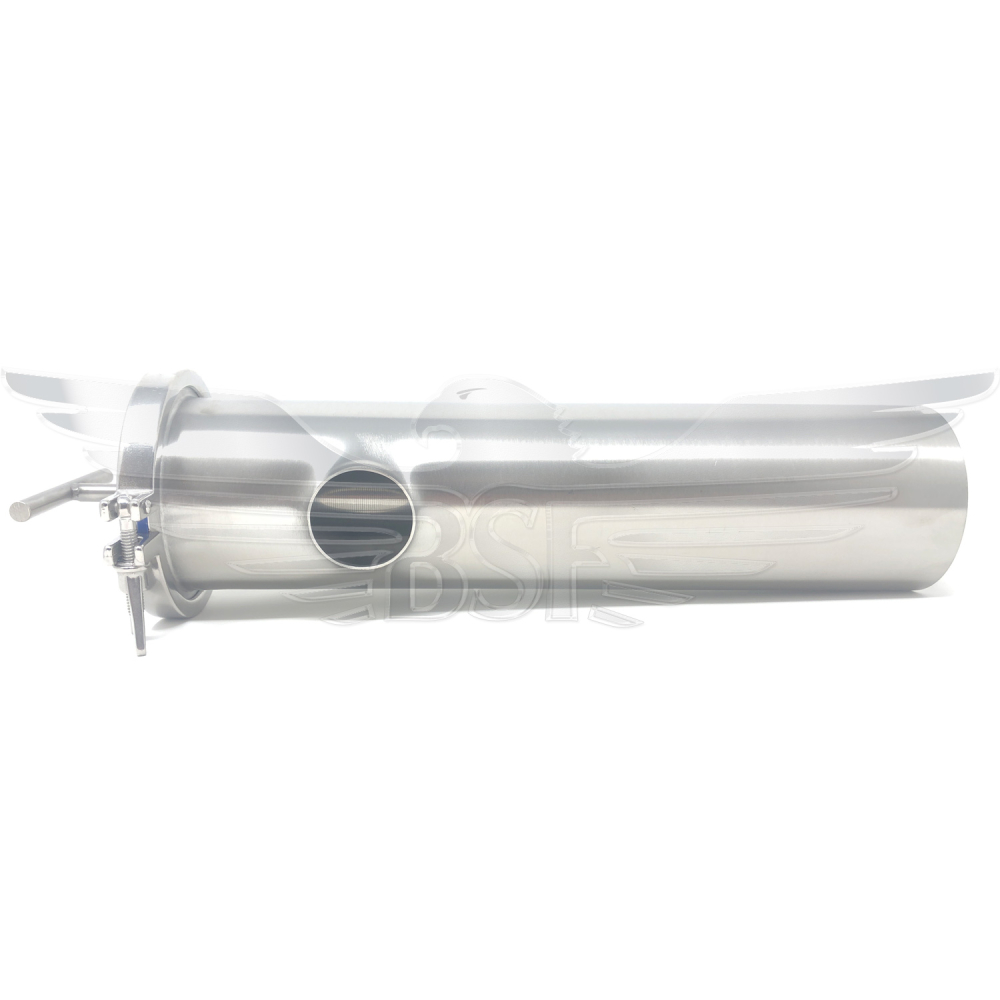

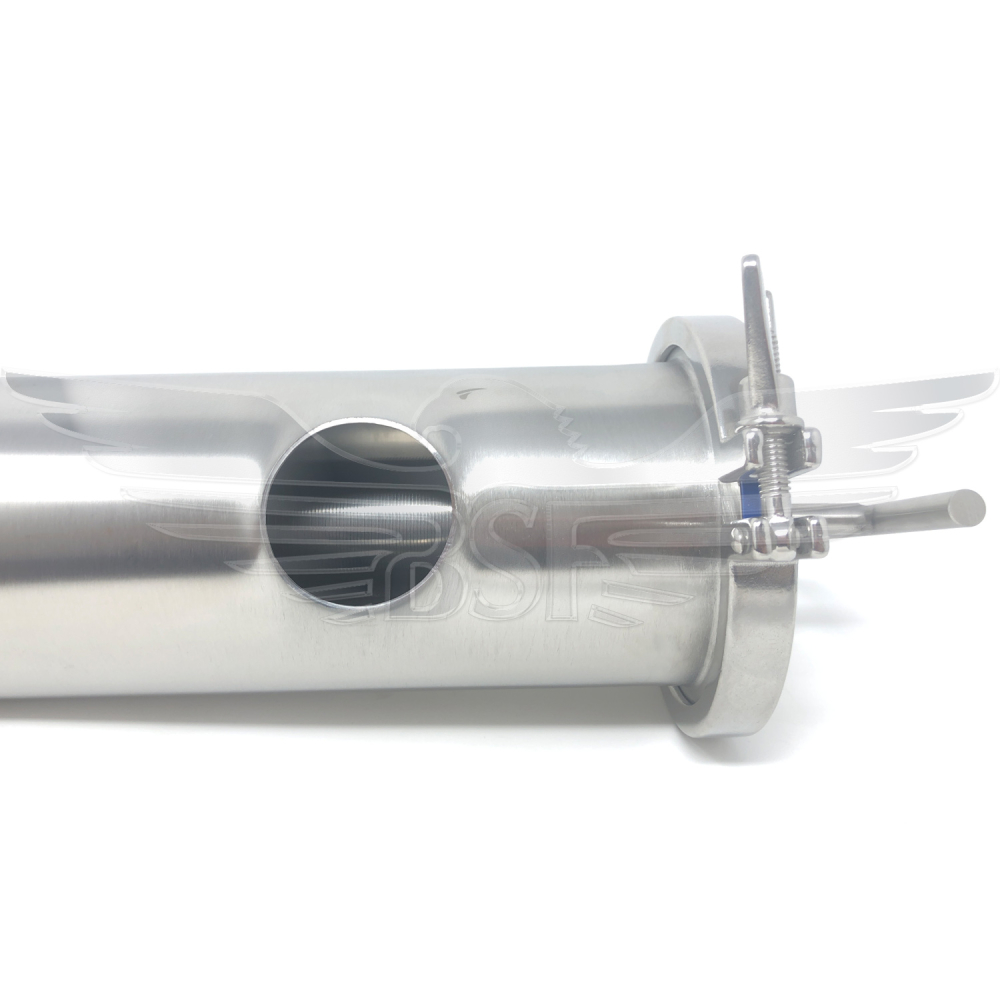

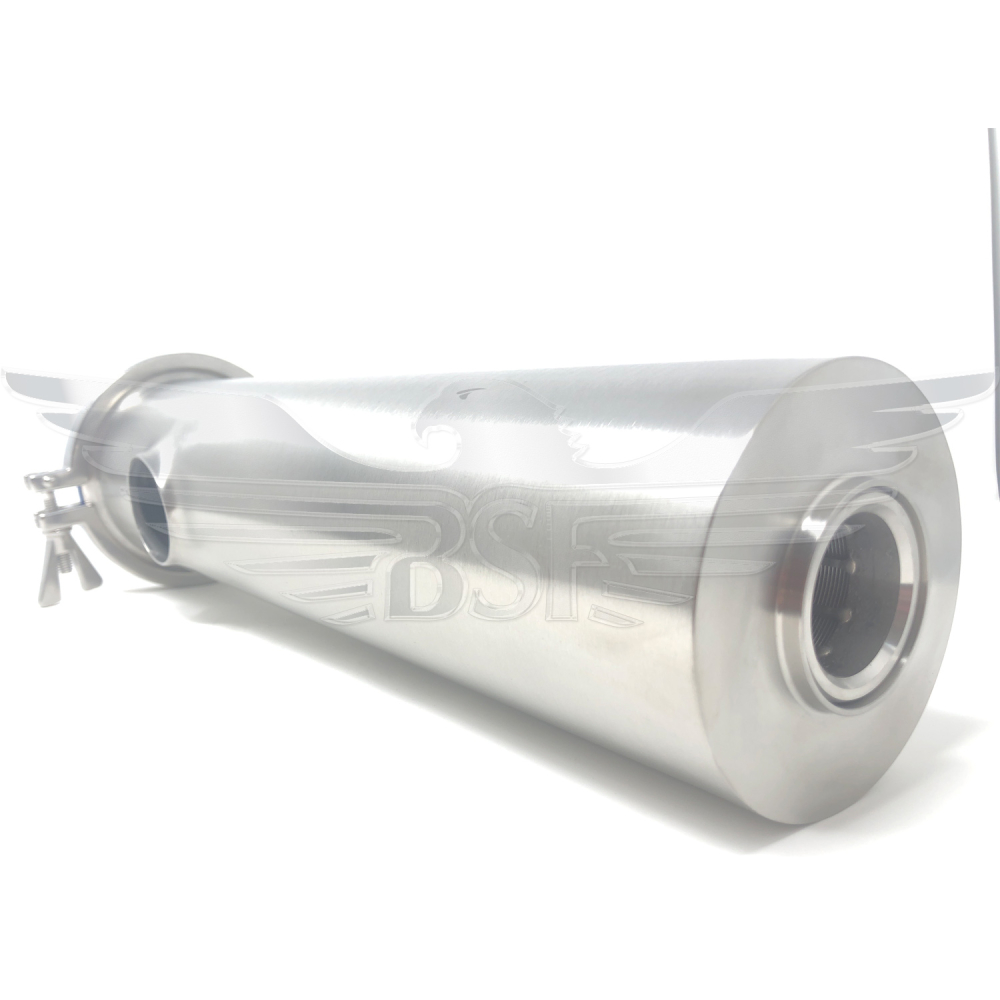

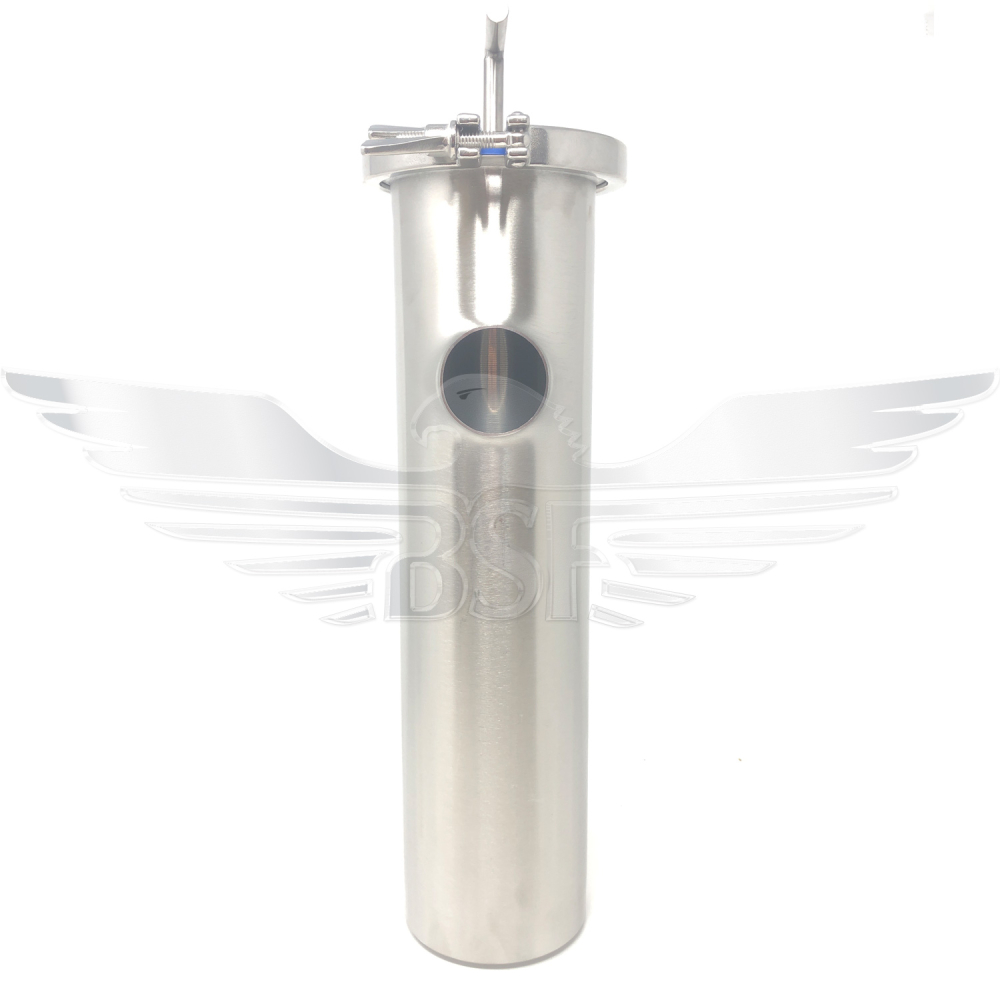

1.5" P/E 90° PRODUCT STRAINER BODY KIT - TYPE A - 316

Stock Code: 2340215

Out of Stock

Descriptions

The 90° product strainer is designed specifically for finer filtration of product, and to remove potentially unwanted items in the product. The body is much larger than the pump protection strainer to keep back pressure and pressure drop to a minimum.

Designed & Manufactured by Berkeley Stainless Fittings Ltd, to the highest quality.
Manufactured entirely from 316L Stainless Steel.
1″ OD – 6″ OD line size available.
Standard finish: Dull Polished O.D, Mill finish I.D – Other finishes available on request.
For 1″, 1.5″ & 2.5″ inlet/outlet, a concentric reducing cone will be used on a standard body.
Alternative ends can be welded to customers requirements – RJT, IDF, CLAMP, DIN & SMS.
Shut off valves can be welded to the unit.
90° product strainer assembly consists of: 1 x Element, 1 x Body, 1 x Single Hinged Clamp & 1 x Lipped EPDM joint ring.
Elements – Perforated type & wedge wire type available to choose from – See element pages
We recommend ordering a replacement element to ease cleaning and to minimize line down time.
Jacketed & Duplex strainers can also be supplied to the customers specifications.
Should you require anymore information regarding our strainers – Please contact your local branch and a member of sales will be happy to assist you.

Specifications

Size	1.5"
Grade	316
Product Group	90 Degree Product Body Type A
Seal Material	EPDM Body Seal
Finish	Dull Polished OD
Additional Info	2" OD Body coned down to 1.5"
