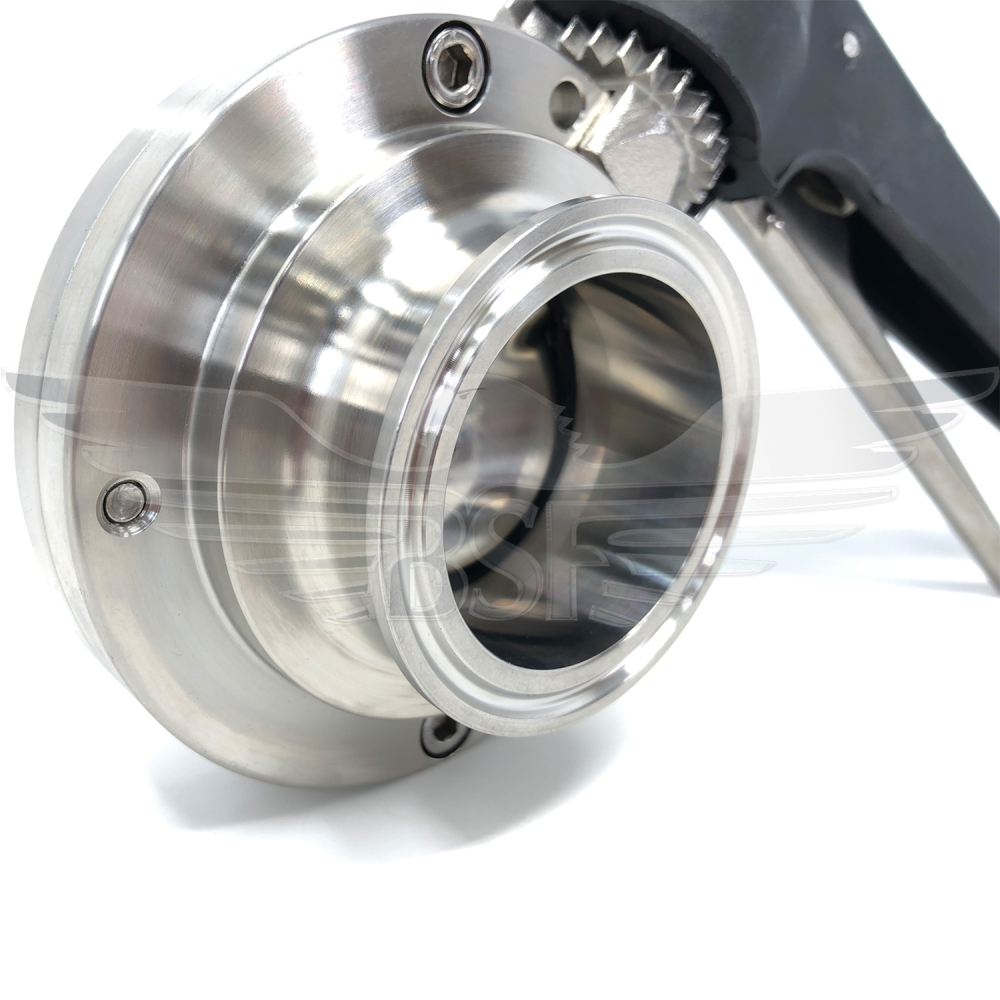

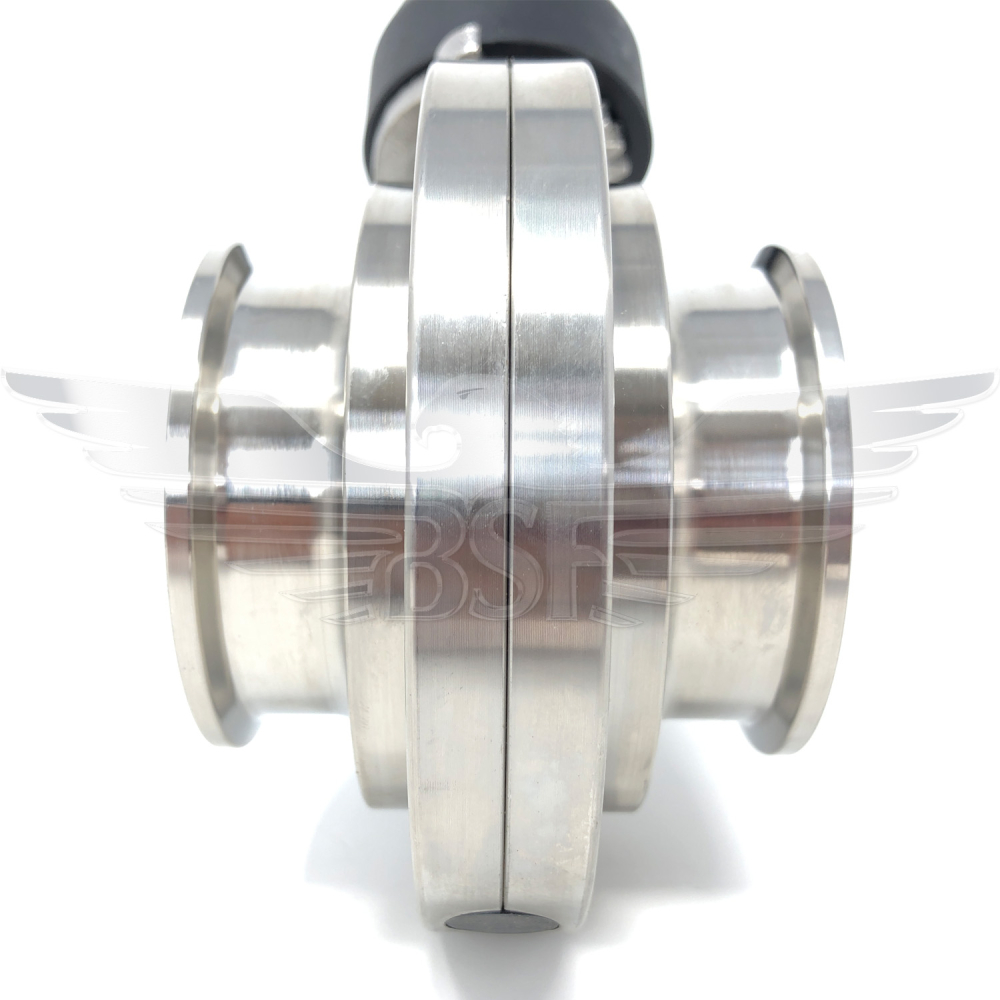

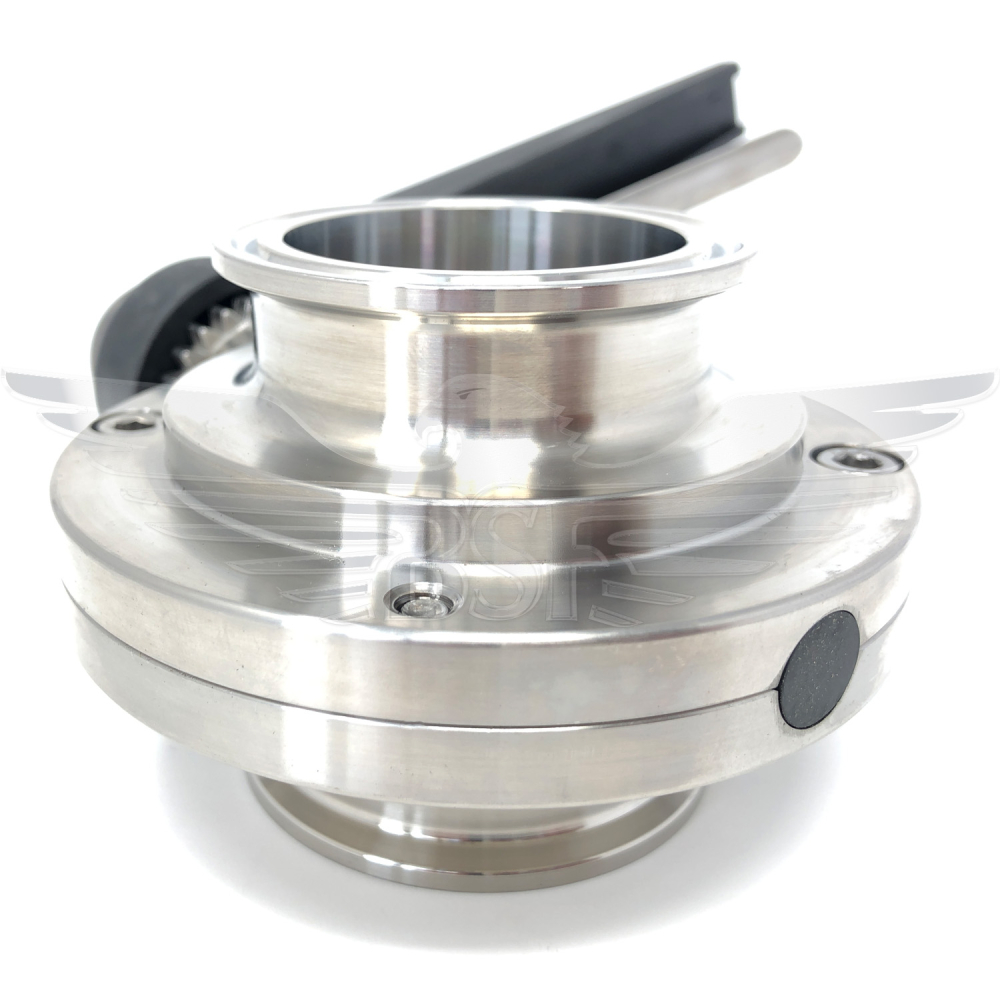

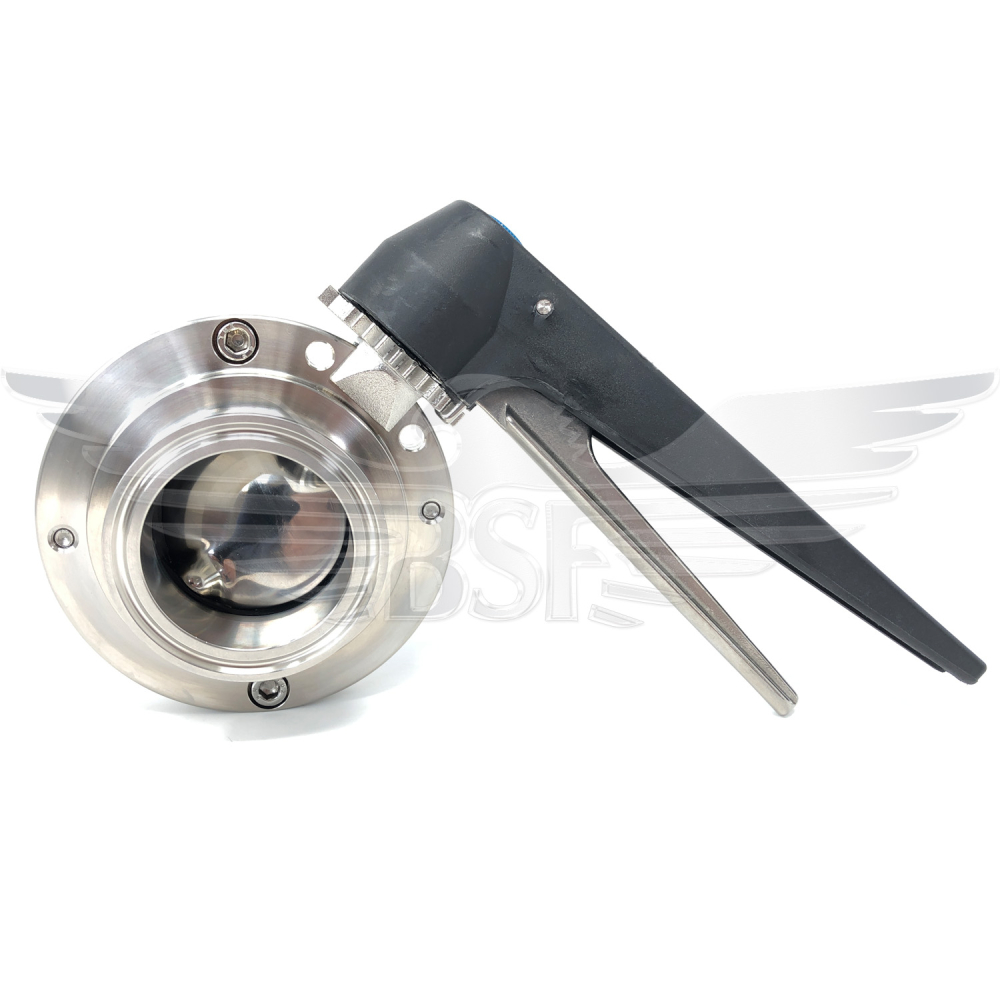

1" CLAMP END 'BSF' BUTTERFLY VALVE 316L - WITH EPDM SEAL & 12 POSITION NYLON HANDLE


Stock Code: 2100893
In Stock
£44.00

The Tri-Clamp BSF Butterfly Valve is a hygienic flow control solution designed for stainless steel process systems in the food and beverage industries. Built for durability and ease of use, it combines a compact design with reliable sealing and manual or automated operation options. Tri-Clamp connections offer quick assembly and disassembly, making them ideal for clean-in-place (CIP) systems and frequent maintenance environments.


  • 1" Tri-Clamp ends for hygienic, tool-free integration
  • 316L stainless steel body with machined finish and highly polished machined disc
  • Supplied with black EPDM seal (Viton and Silicone options available)
  • 12-position reinforced nylon handle with stainless steel gripper bar
  • Rated to 150 psi for medium-pressure systems
  • Built to 3A hygienic standards
  • 8mm x 12mm drive head for actuator compatibility
  • Suitable for manual or automated operation
Size1"
Grade316/L
Standard3A/Tri-Clamp
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Additional InfoNylon Reinforced Handle
Disc Drive Head8mm x 12mm
Handle Included?Yes
