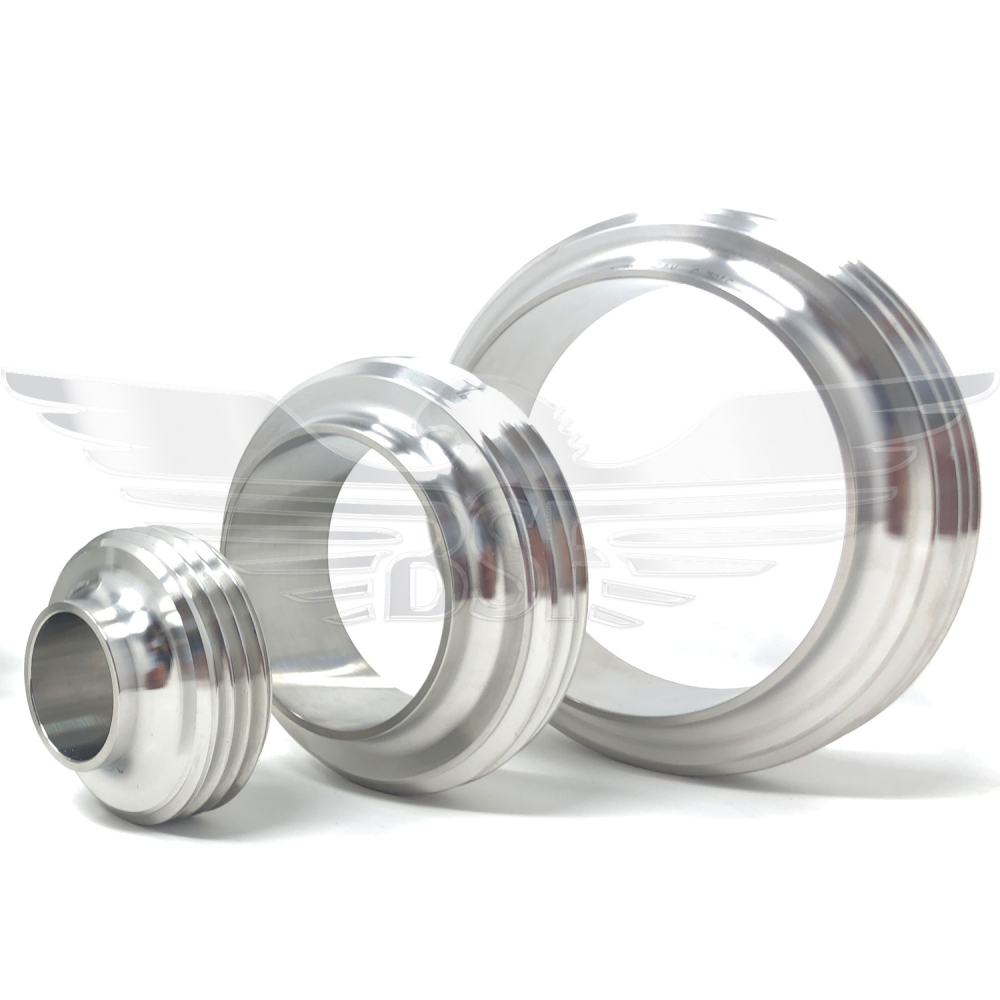

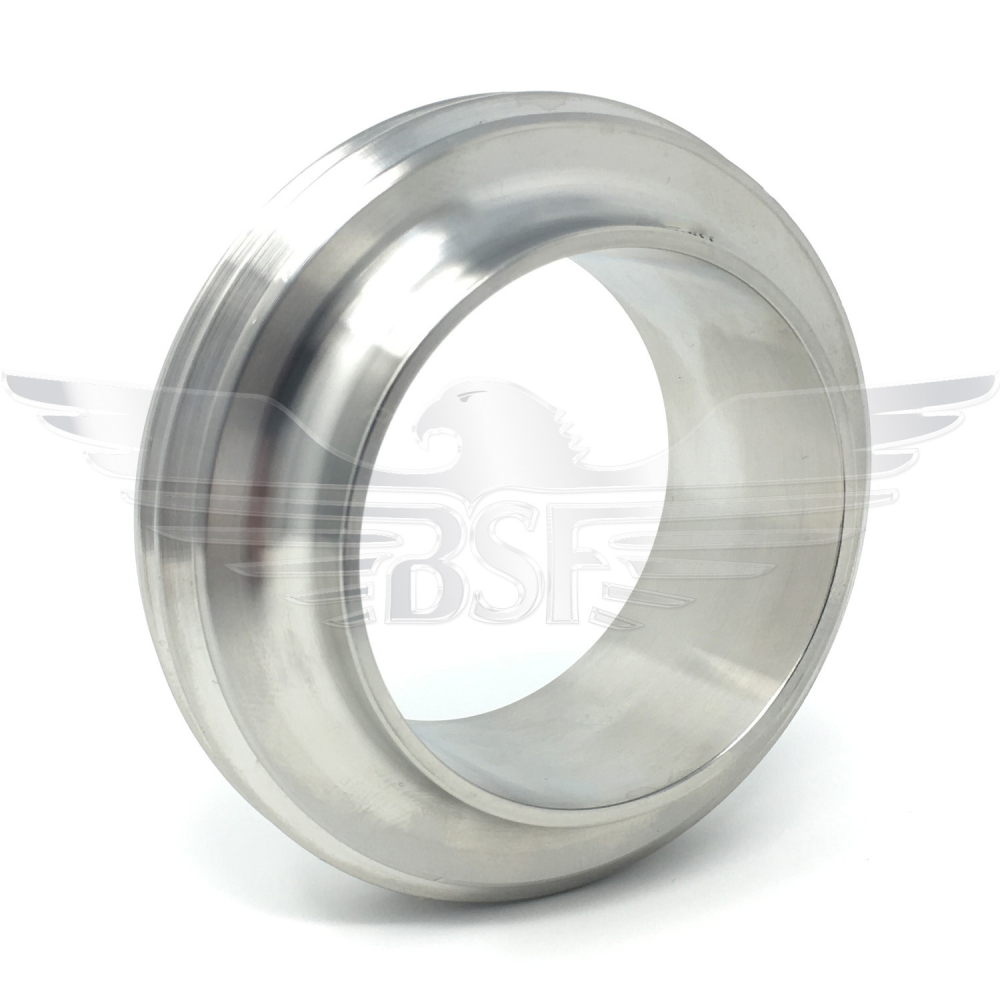

2.5Inch RJT MALE PART 316L
2.5Inch RJT MALE PART 316L

2.5" RJT MALE PART 316L


Stock Code: 0102425
In Stock
£5.20

The RJT male is a precision-engineered part of the Ring Joint Type (RJT) union, widely used in hygienic process systems across the dairy, brewing, food processing, and general engineering sectors.


Design & Material

  • Material: Manufactured from 316 stainless steel for superior corrosion resistance and durability
  • Profile: Machined to accept the pressed liner and joint ring, forming a secure and sanitary seal when tightened with the RJT nut
  • Threaded end: Designed to engage with the RJT nut, compressing the joint ring for leak-proof performance

Hygienic Function

  • Smooth internal bore supports clean-in-place (CIP) systems
  • Minimizes crevices and potential contamination points
  • Compatible with “O” type joint rings in Nitrile, EPDM, Viton, and metal detectable variants

Compatibility

  • Standard across UK hygienic fittings
  • Available in sizes from 1″ to 4″ OD
  • Works in conjunction with RJT hex nuts and pressed liners
Product GroupRJT
Size2.5" / 63.5mm OD
Grade316L
StandardBS4825 PT5
