4Inch RJT M/M NON RETURN VALVE 316 C/W EPDM SEAL

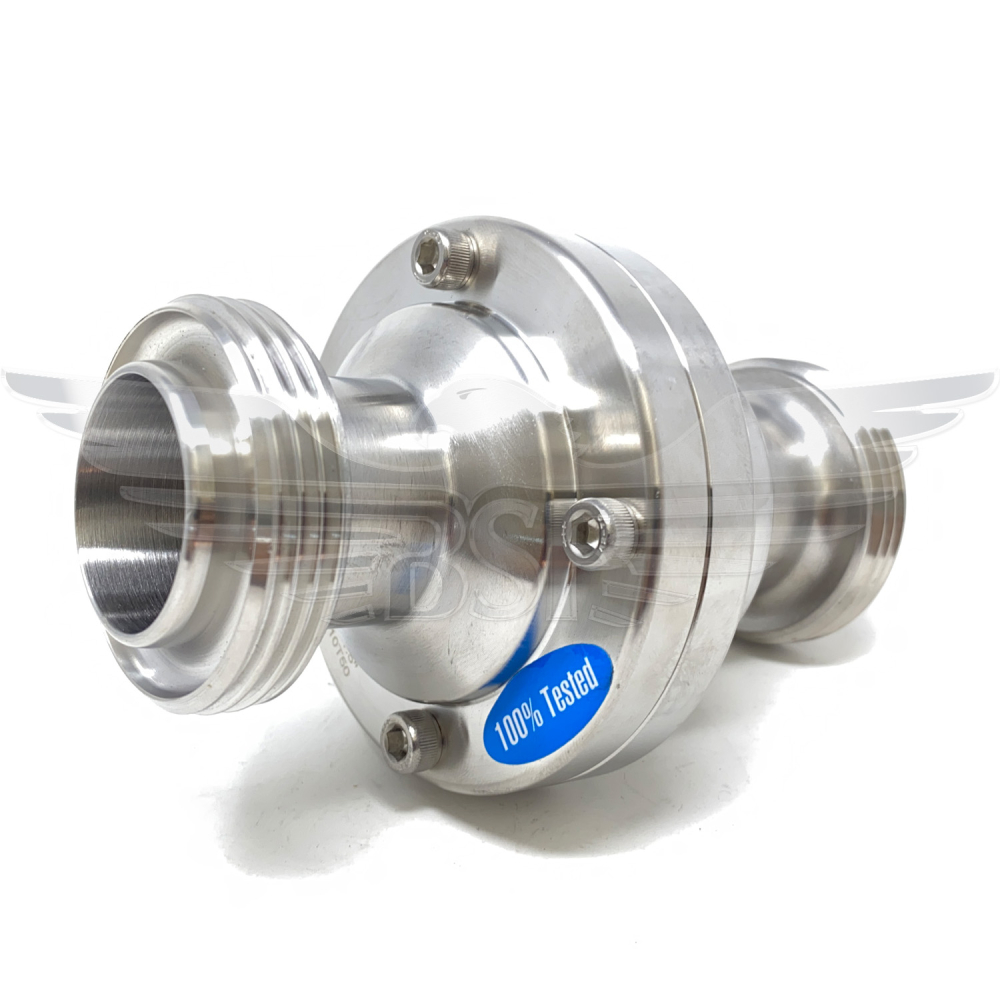

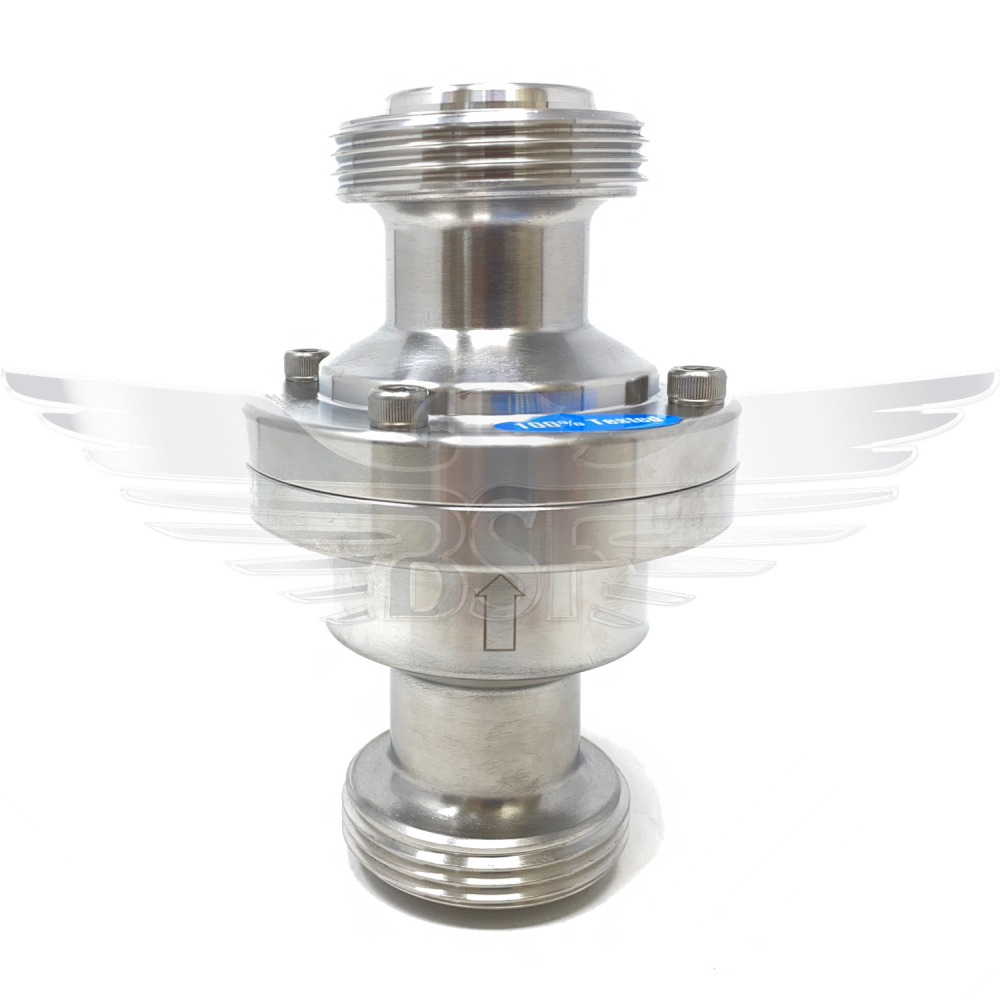

RJT M/M Non Return Valve

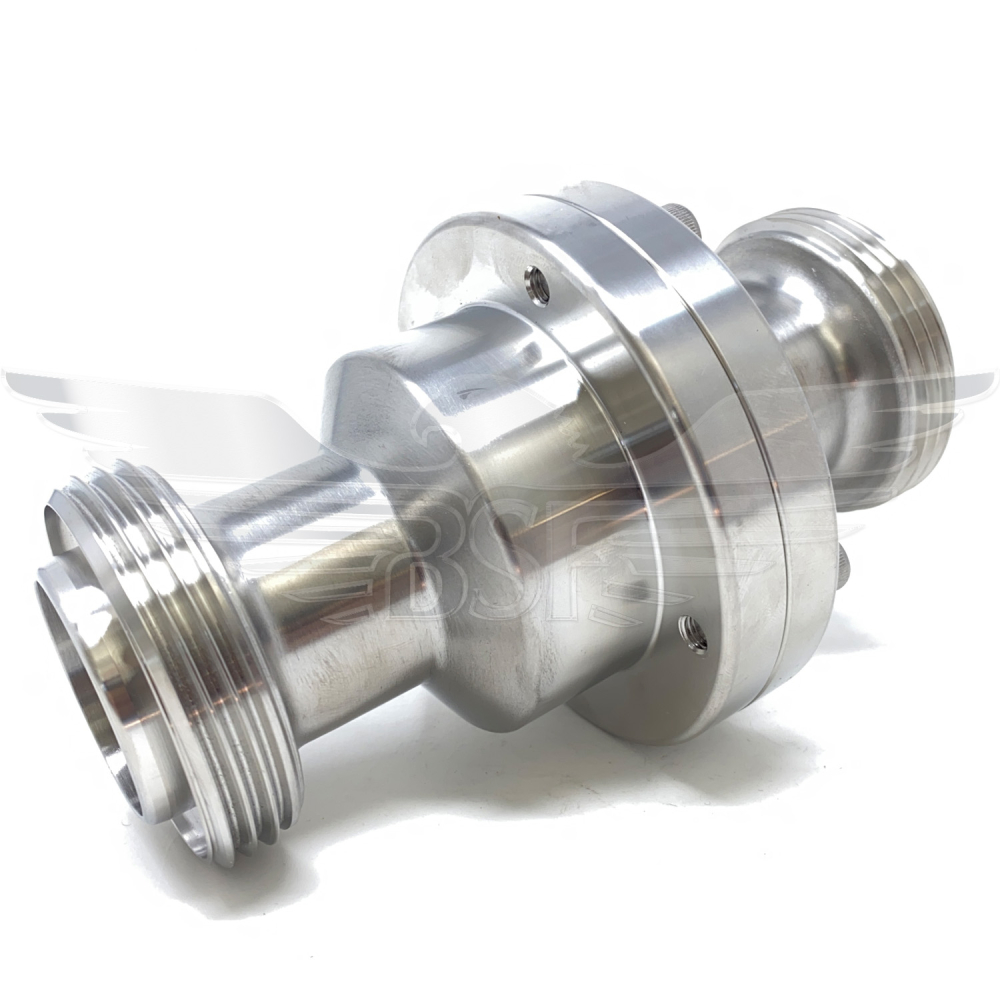

RJT M/M Non Return Valve 2

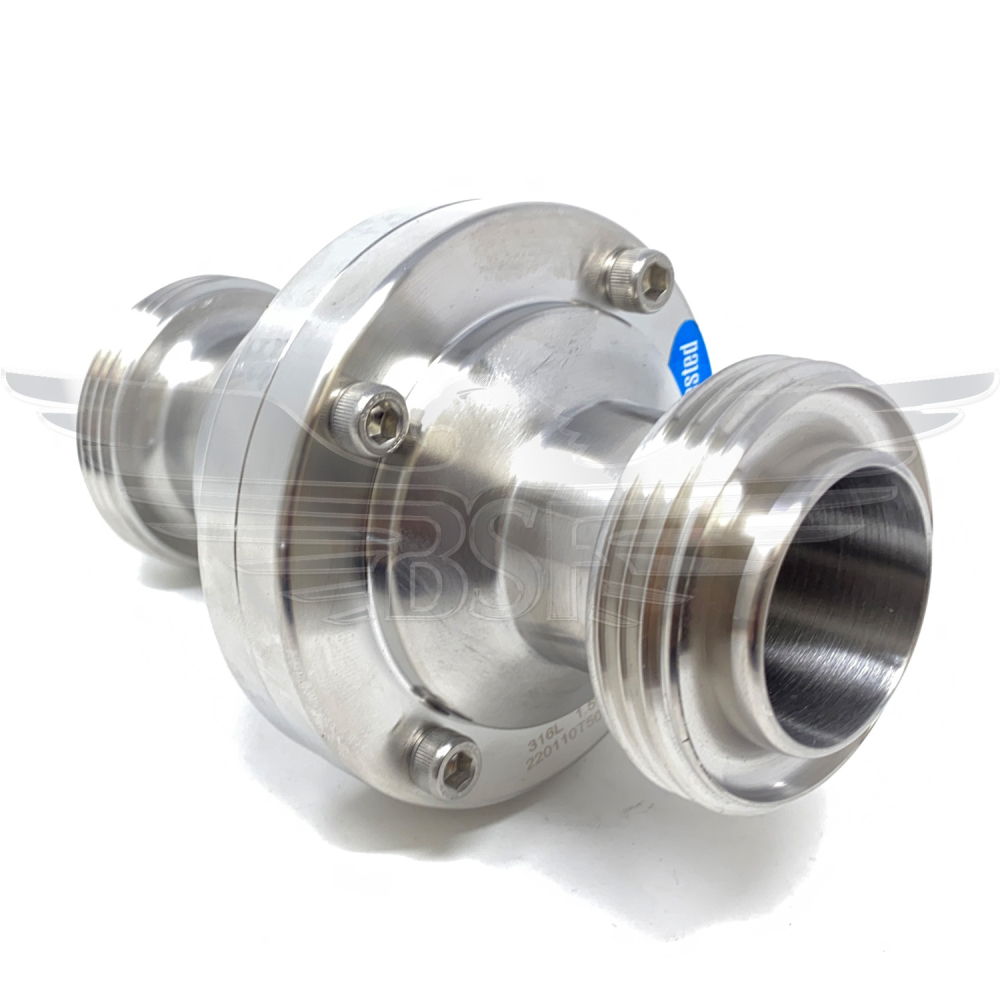

RJT M/M Non Return Valve 3

4" RJT M/M NON RETURN VALVE 316 C/W EPDM SEAL


Stock Code: 2200240
In Stock
£198.60

Descriptions

  • Fabricated to order - 4" RJT Male x Male Non Return Valve.
  • Grade 316 body, piston & spring.
  • EPDM body & piston seal.
  • Max Pressure – 150psi / 10bar.
  • Spare seal kits c/w spring, available ex-stock.
  • Alternative ends can be welded on request.

For overall length dimension, please see below data sheet. Take dims C & D, then add on length of RJT Male (27mm) x 2 = (C+D+27+27=)

Size4"
Grade316/L
Product GroupNon Return Valve
Standard3A/RJT
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Open Pressure0.9 PSI

Click on any of the following links to download the file.
