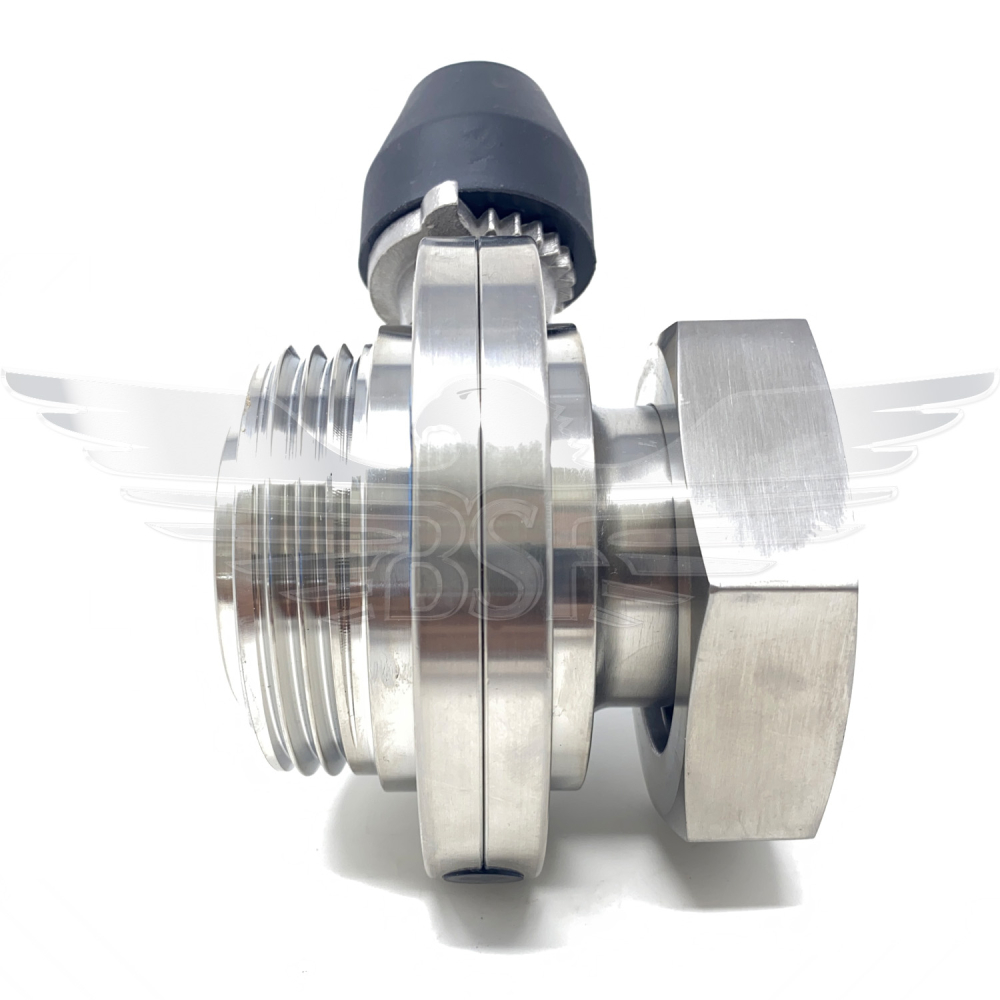

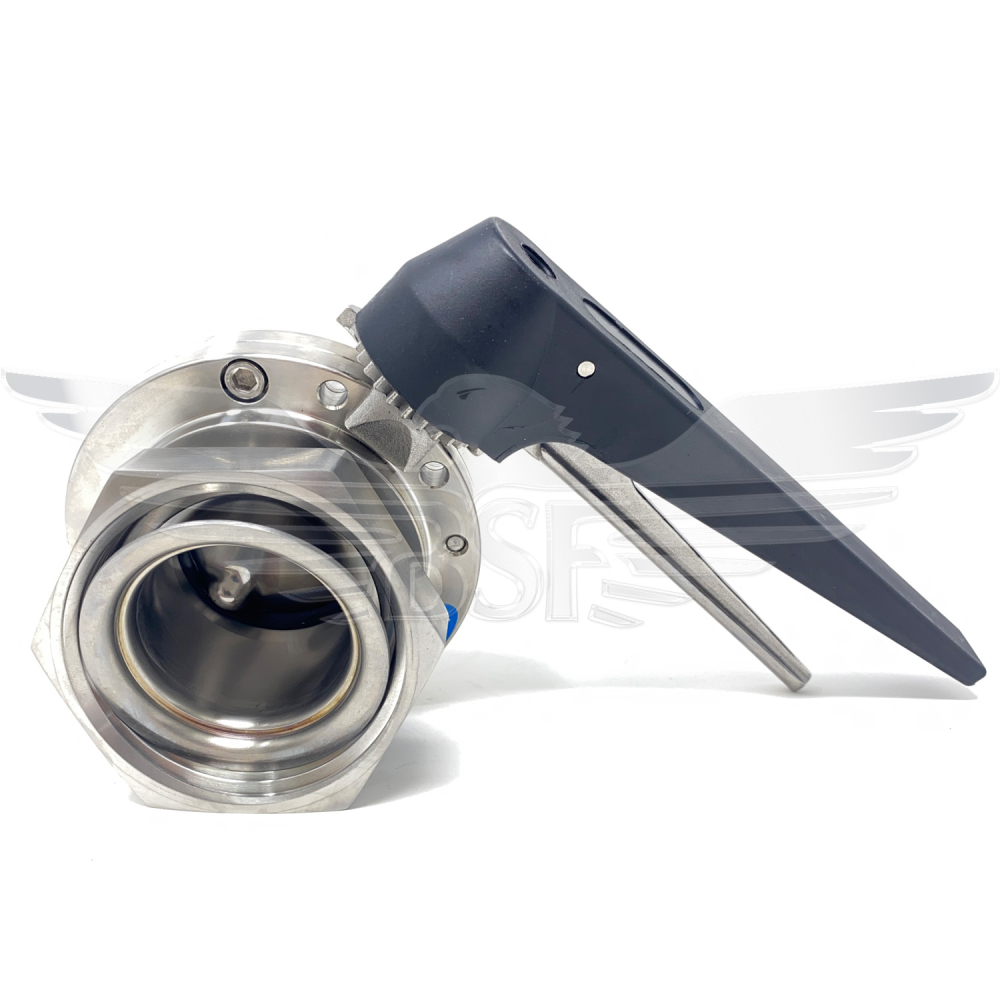

4Inch RJT M/F 'BSF' BUTTERFLY VALVE 316L - WITH EPDM BODY SEAL & 12 POSITION NYLON HANDLE
4Inch RJT M/F 'BSF' BUTTERFLY VALVE 316L - WITH EPDM BODY SEAL & 12 POSITION NYLON HANDLE

4" RJT M/F 'BSF' BUTTERFLY VALVE 316L - WITH EPDM BODY SEAL & 12 POSITION NYLON HANDLE

This item is made to order by BSF. Please allow approx 3-4 Working Days for delivery

Stock Code: 2100803
In Stock
£121.96

The RJT Male x Female BSF Butterfly Valve is a hygienic flow control solution designed for stainless steel process systems in the food and beverage industries. Built for durability and ease of use, it combines a compact design with reliable sealing and manual or automated operation options. This configuration is fabricated to order on a short lead-time, providing flexibility for bespoke installations and mixed RJT connections.


  • 4" RJT Male x Female ends for hygienic threaded integration
  • Fabricated to order with short lead-times for tailored system compatibility
  • 316L stainless steel body with machined finish and highly polished machined disc
  • Supplied with black EPDM seal (Viton and Silicone options available)
  • 12-position reinforced nylon handle with stainless steel gripper bar
  • Rated to 150 psi for medium-pressure systems
  • Built to 3A hygienic standards
  • 12mm x 12mm drive head for actuator compatibility
  • Suitable for manual or automated operation
Size4"
Grade316/L
Standard3A/RJT
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Additional InfoNylon Reinforced Handle
Disc Drive Head12mm x 12mm
Handle Included?Yes
