2.5Inch RJT M/F 90° BS BEND POLISHED 316L
2.5Inch RJT M/F 90° BS BEND POLISHED 316L

2.5" RJT M/F 90° BS BEND POLISHED 316L

This item is made to order by BSF. Please allow approx for delivery

Stock Code: 0105025
In Stock
£36.30

The RJT (Ring Joint Type) union is by far the most popular in the UK. Used for many applications in the dairy, brewery, food processing and general engineering industries


The union consists of a hexagon nut in 304 stainless steel, a male part and a pressed liner both in grade 316. The joint ring is an “O” type joint ring and is normally in Nitrile.

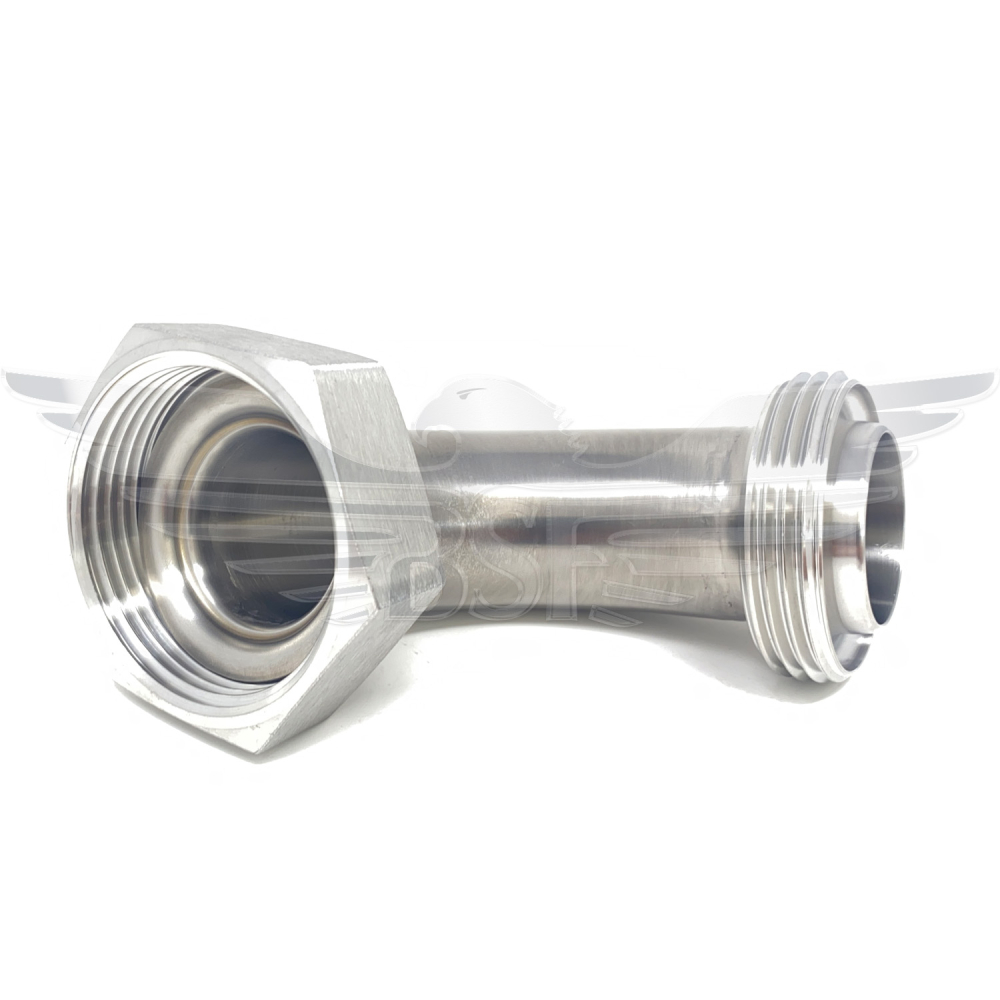

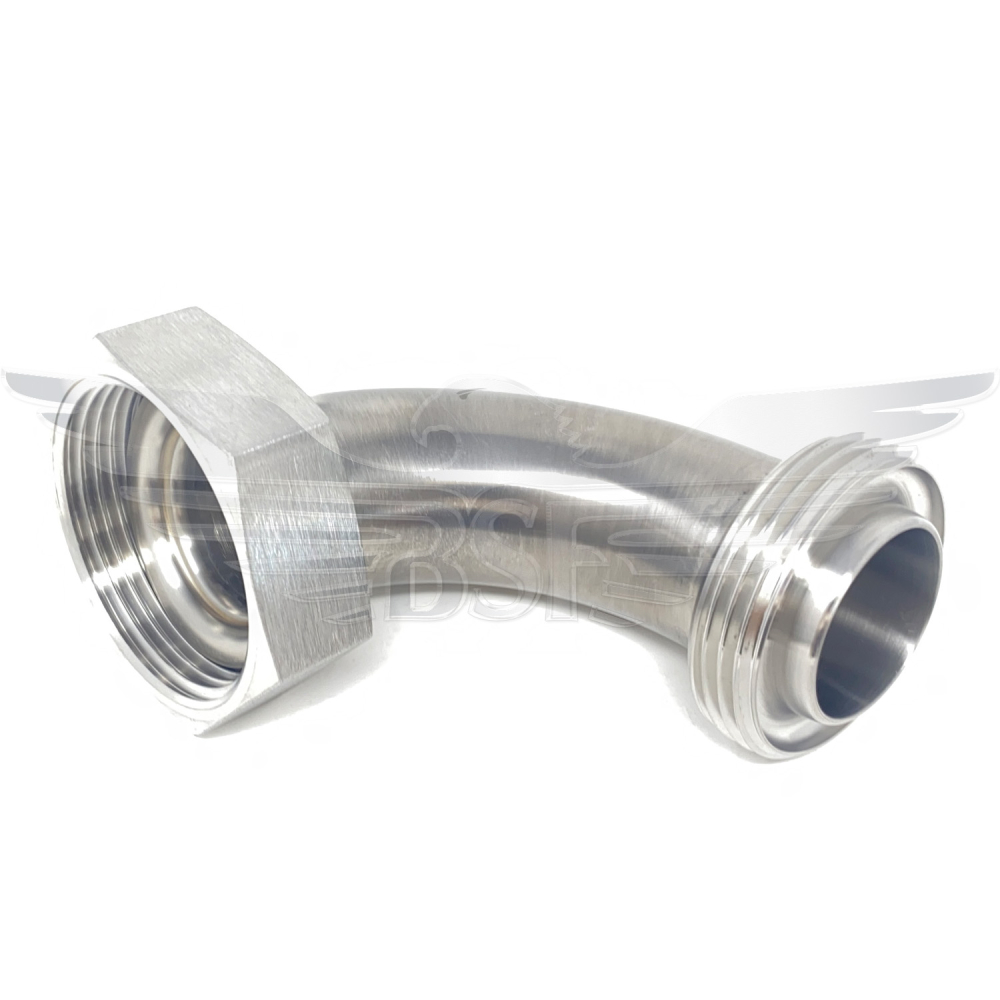

The M/F elbow is a popular fitted bend - Fabricated in house by BSF using a BS Short bend, RJT Nut, Liner & Male. Welds are left as laid as standard.

RJT M/M 90° Bends, and RJT M/F & M/M 45° Bends can also be fabricated to order.

Product GroupRJT
Size2.5"
Grade316L - 304 RJT Nut
Bend Radius95.3mm
Centre To Face (mm)141mm x 126.7mm
