2.5Inch RJT COMPLETE UNION 316 BLACK *VITON* SEAL

2.5" RJT COMPLETE UNION 316 BLACK *VITON* SEAL


Stock Code: 0102876
In Stock
£14.27

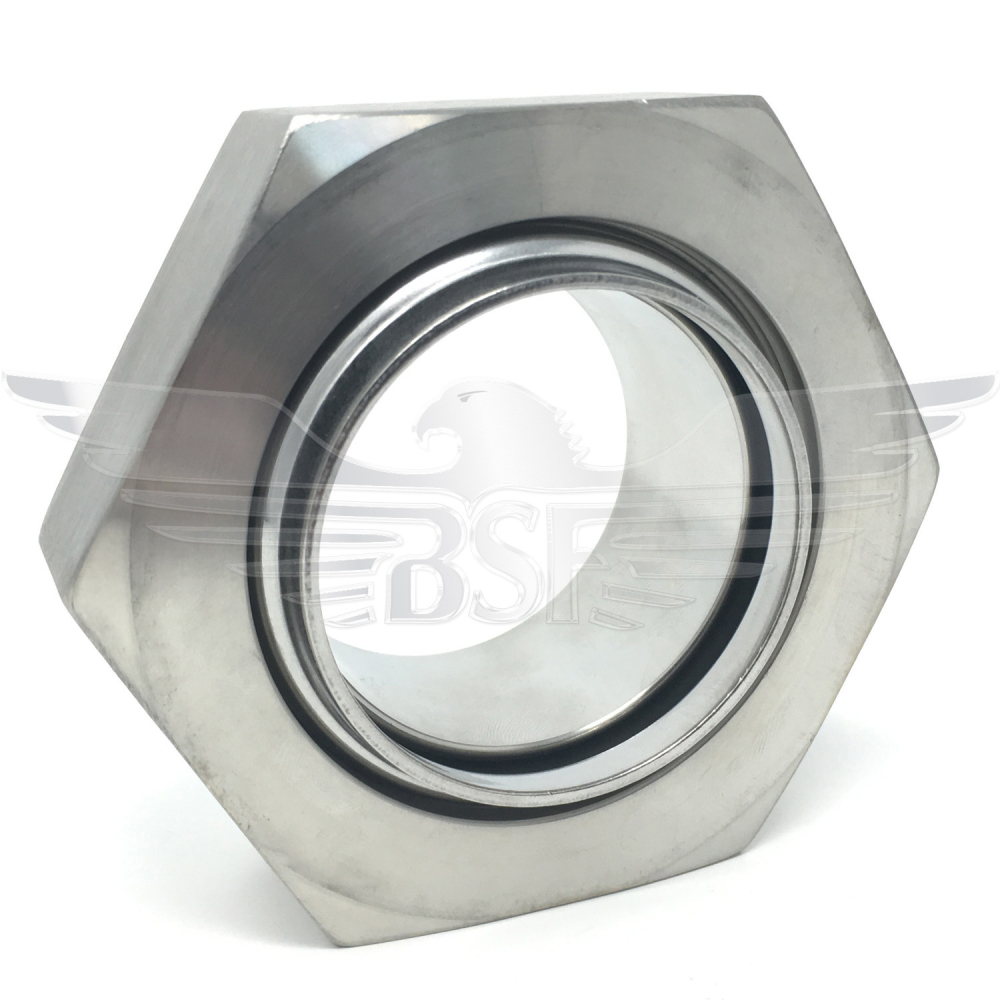

This complete RJT union provides a robust, hygienic connection for stainless steel tube systems, commonly used in pharmaceutical, chemical, food, and beverage processing. Supplied fully assembled with a Viton joint ring, it offers superior resistance to high temperatures and aggressive chemicals.


Components Included

  • RJT Male Part – Machined from 316 stainless steel
  • Pressed Liner – Formed from 316 stainless steel for hygienic flow
  • Hex Nut – Typically 304 stainless steel
  • Viton “O” Ring – Fluoroelastomer seal for demanding process conditions

Specifications

  • Size range: Available from 1″ to 4″ OD
  • Material: 316 stainless steel (male and liner), 304 stainless steel (nut)
  • Finish: Dull polished
  • Seal: Viton rubber, 75 Shore A hardness

Applications

  • Suitable for hygienic systems exposed to solvents, acids, and high-temperature steam
  • Compatible with Clean-In-Place (CIP) and Steam-In-Place (SIP) routines


Disclaimer: It is the customer’s responsibility to ensure that the selected seal material is chemically compatible with their specific process media and operating conditions.




Product GroupRJT
Size2.5" / 63.5mm OD
Grade304 Nut - 316L Wetted Parts
StandardBS4825 PT5
Seal MaterialViton
Seal ColourBlack
