4Inch RJT COMPLETE UNION 316 *EPDM* SEAL

4" RJT COMPLETE UNION 316 *EPDM* SEAL


Stock Code: 0102860
In Stock
£20.46

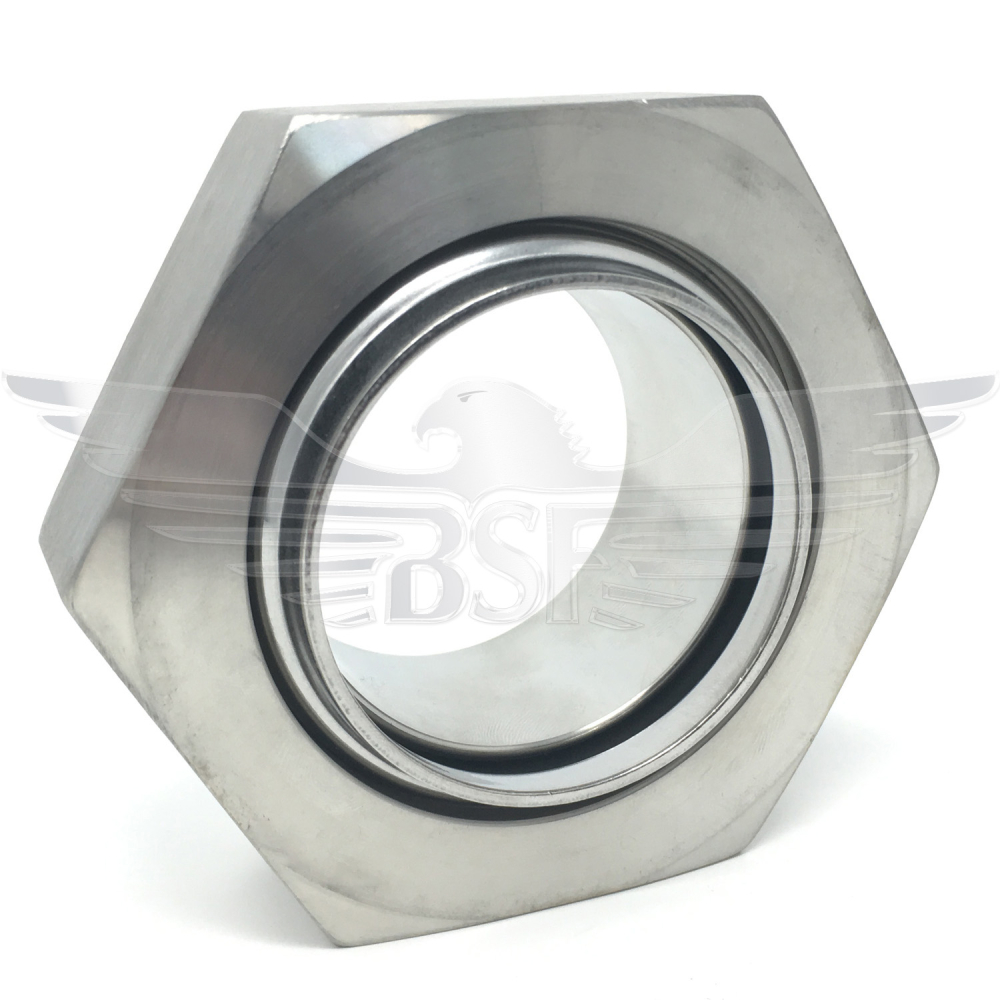

This complete RJT union provides a secure, hygienic connection for stainless steel tube systems, commonly used in food, dairy, beverage, and pharmaceutical processing. Supplied fully assembled with an EPDM joint ring, it offers excellent resistance to cleaning chemicals and steam sterilization.


Components Included

  • RJT Male Part – Machined from 316 stainless steel
  • Pressed Liner – Formed from 316 stainless steel for hygienic flow
  • Hex Nut – Typically 304 stainless steel.
  • EPDM “O” Ring – Ideal for CIP and SIP applications

Specifications

  • Size range: Available from 1″ to 4″ OD
  • Material: 316 stainless steel (male and liner), 304 stainless steel (nut)
  • Finish: Dull polished
  • Seal: EPDM rubber, 70–75 Shore A hardness

Applications

  • Suitable for hygienic systems requiring frequent disassembly
  • Compatible with Clean-In-Place (CIP) and Steam-In-Place (SIP) routines


Disclaimer: It is the customer’s responsibility to ensure that the selected seal material is chemically compatible with their specific process media and operating conditions.




Product GroupRJT
Size4" / 101.6mm OD
Grade304 Nut - 316L Wetted Parts
StandardBS4825 PT5
Seal MaterialEPDM
Seal ColourBlack
