4Inch 2mm PUMP PROTECTION ELEMENT ASSEMBLY 316
4Inch 2mm PUMP PROTECTION ELEMENT ASSEMBLY 316
4Inch 2mm PUMP PROTECTION ELEMENT ASSEMBLY 316

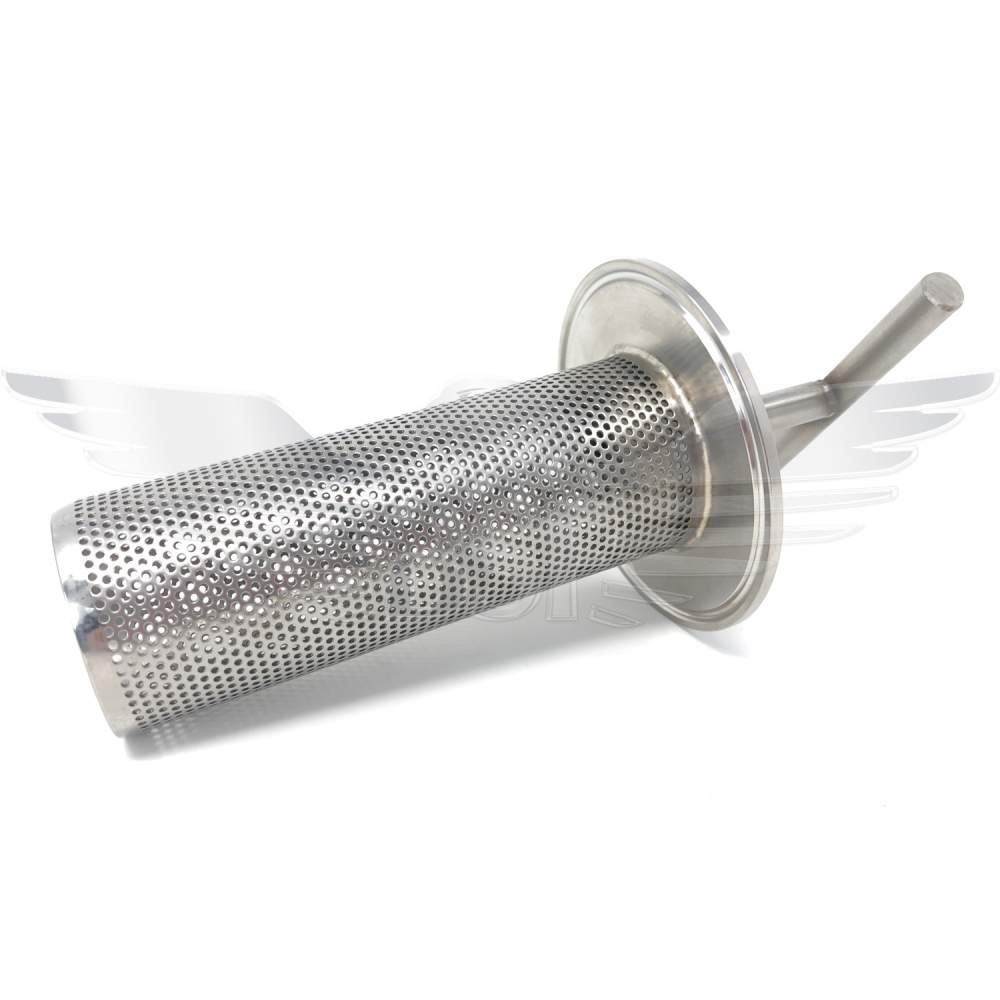

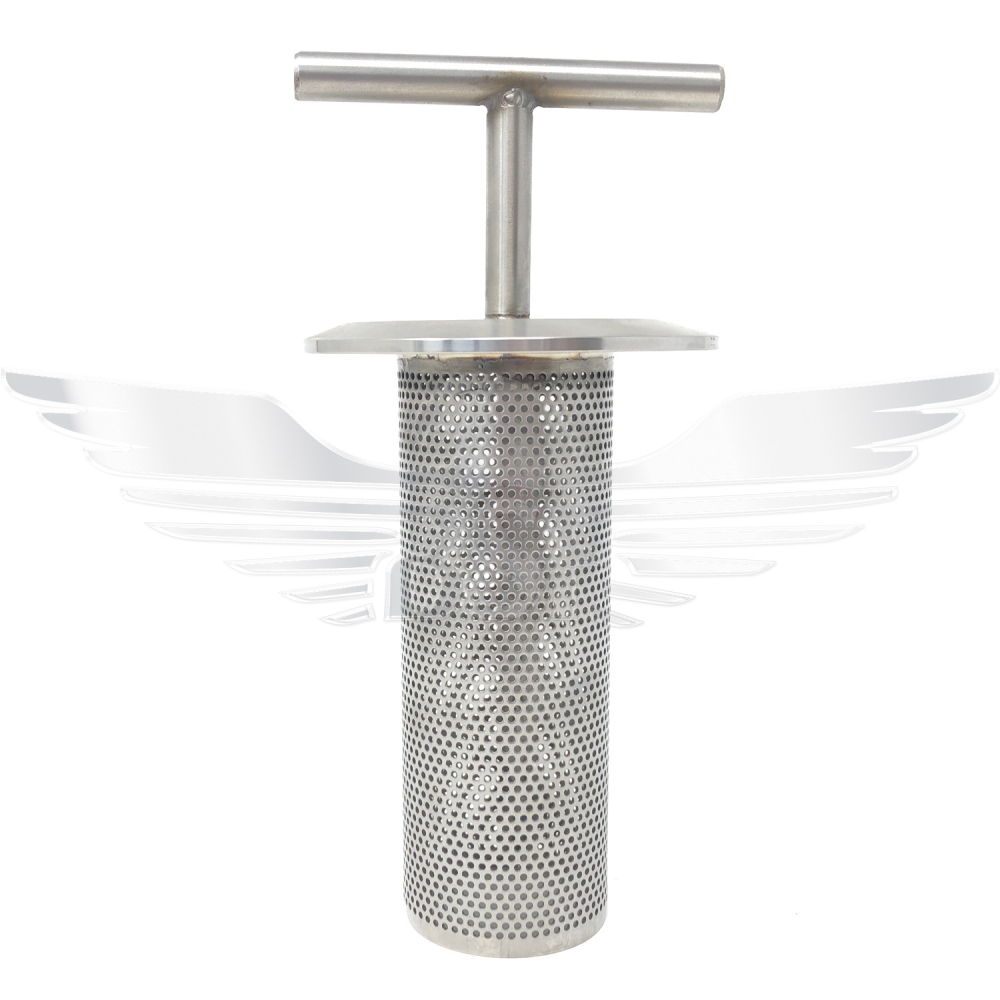

4" 2mm PUMP PROTECTION ELEMENT ASSEMBLY 316

This item is made to order by BSF. Please allow approx for delivery

Stock Code: 2320631
In Stock
£213.79

Perforated elements are stocked for both pump protection & product strainers in a variety of hole sizes. Elements are made from 316 stainless steel sheets, perforated out of house, then rolled & welded in house.

Elements can be over/inner wrapped with mesh, for finer filtration.

  • Designed & Manufactured by Berkeley Stainless Fittings Ltd.
  • Made from 316 stainless steel.
  • Various hole sizes available ex-stock.
  • Element assembly consists of: 1 x element & 1 x clamp blank.

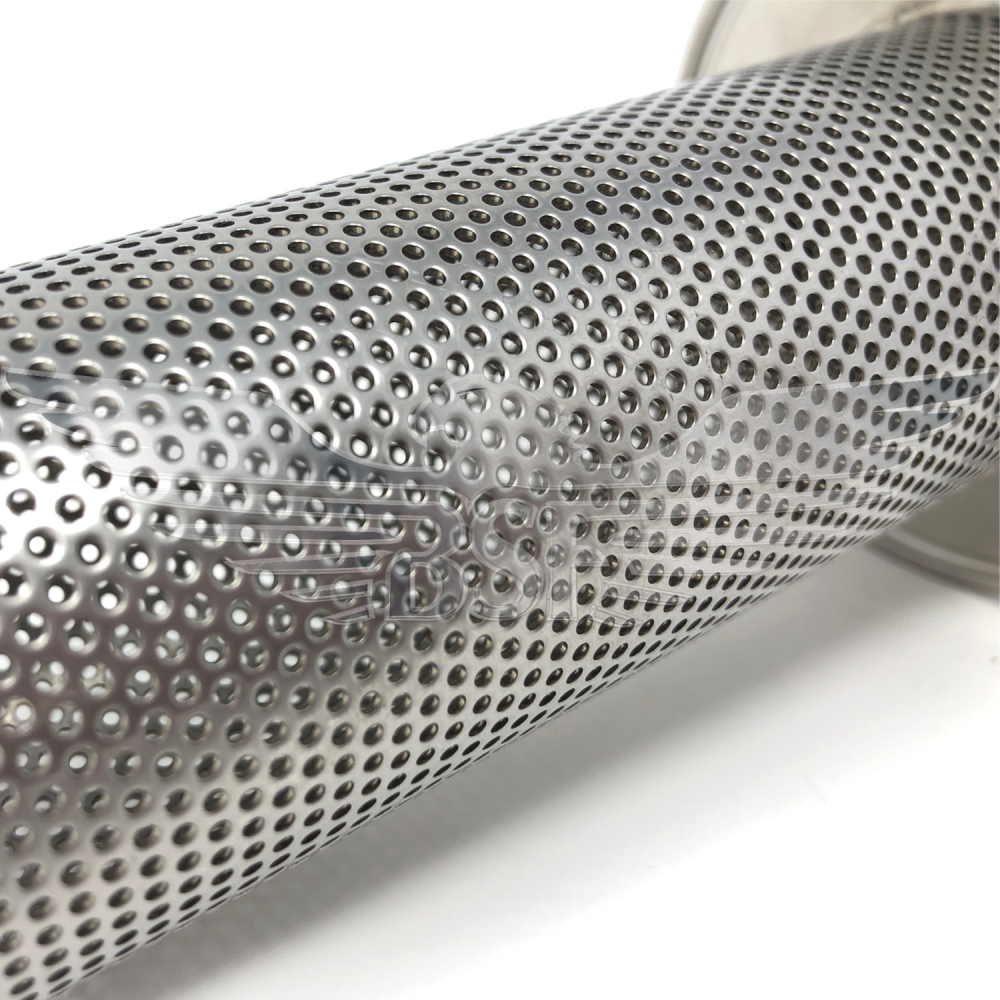

  • Perforations are staggered pitch – @ 60 degree’s.
  • Inner/Outer mesh wrap can be supplied.
  • Rigid elements suitable for reverse flushing (unless over/inner wrapped – Please contact us for a solution)
  • Suitable for C.I.P & S.I.P.
  • Other holes sizes available on request

All elements are generally on a few days lead-time.

Product GroupPump Protection Perforated Element
Size4"
Grade316
Hole Dia2mm
Pitch4mm
Pattern60 Degree Staggered Pitch
