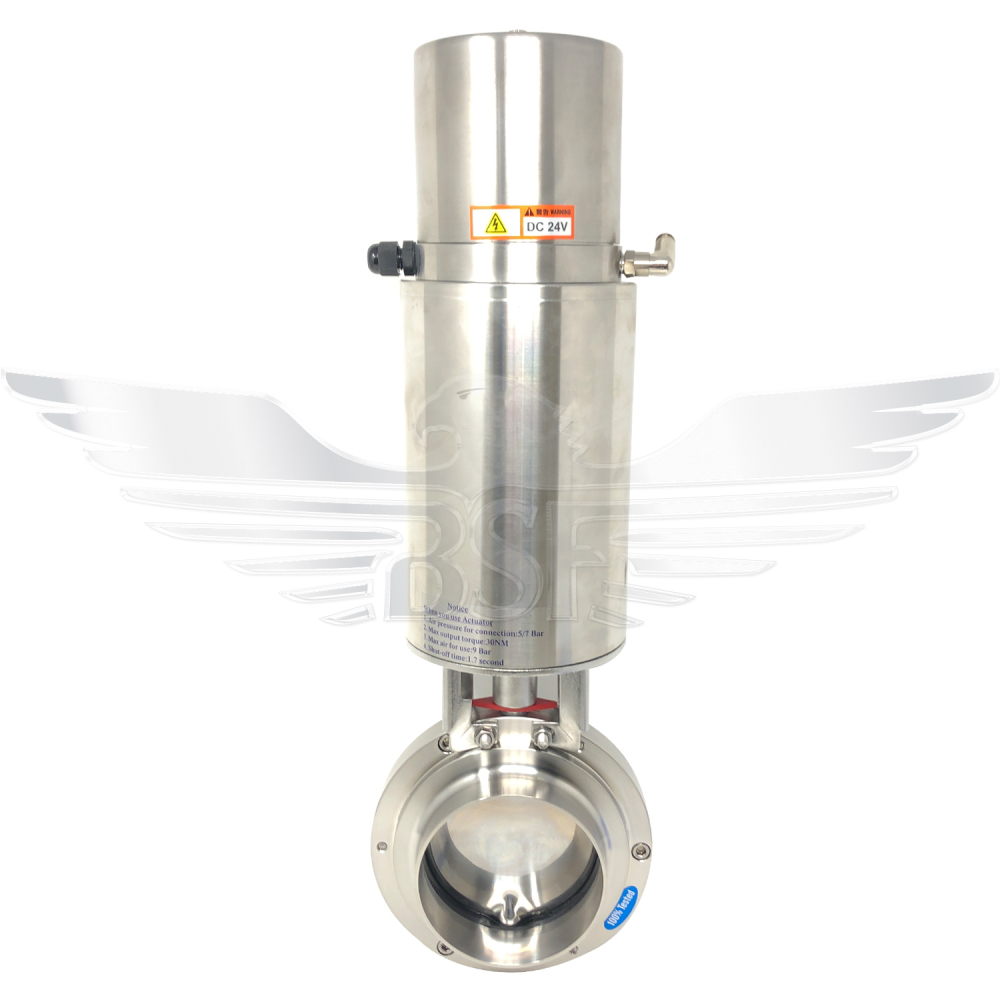

C101 PNEUMATIC ACTUATOR FOR 4Inch BFV - AIR/SPRING

C101 PNEUMATIC ACTUATOR FOR 4" BFV - AIR/SPRING


Stock Code: 2100860
In Stock
£244.48

Descriptions

  • 304 Stainless Steel.
  • Air / Spring operation.
  • For use with: 4″ Butterfly Valves.
  • Can be used with or without a control box.
  • C101 Shut off time: 1.7 Seconds.
  • C101 Operating Air Pressure: 6kg/cm2 – Min: 5 bar – Max: 9 bar compressed air.
  • C101 Air Consumption: 0.550 Litre @ 5 bar.
  • MAX Output Torque: 30N/M.
  • Actuator Drive Head: 12mm x 12mm Square.
  • C101 WEIGHT: 4.7kg.
  • Individually wrapped C/W mounting Kit.

Size4"
Grade304
Product GroupButterfly Valve Actuation & Control
FinishMachined
Additional InfoNormally Closed
