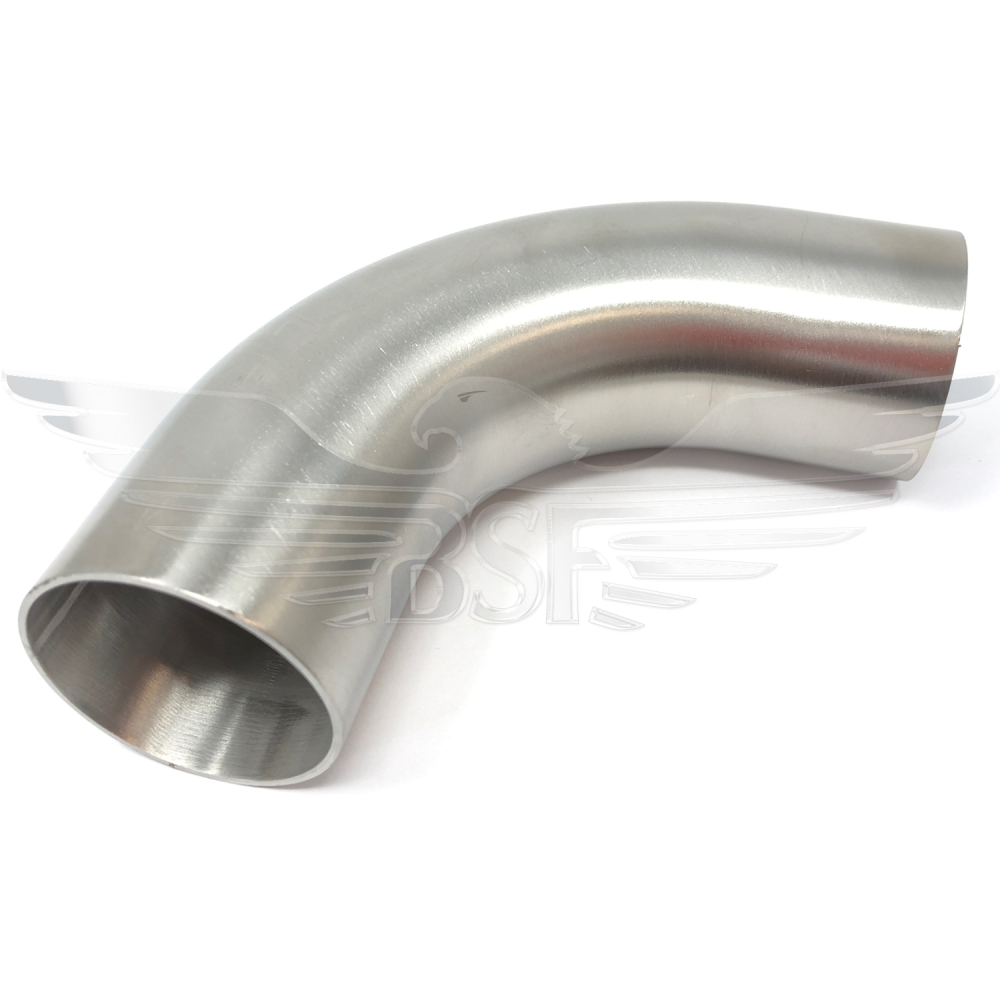

3/4Inch 90° BEND POLISHED 316L

3/4" 90° BEND POLISHED 316L


Stock Code: 0900207
In Stock
£4.58

Descriptions

  • 1/2″ – 4″ OD
  • Manufactured to BS4825 PT2 – Long
  • Industry standard 90° Bend.
  • Radius = 1.5 Diameter.
  • Full certification can be supplied on request.

Size3/4" / 19.05mm OD
Grade316L
Product Group90 Degree Bend
StandardBS
Bend Radius1.5D / 29mm
Centre To Face (mm)50mm
FinishPolished
Thickness1.65mm
